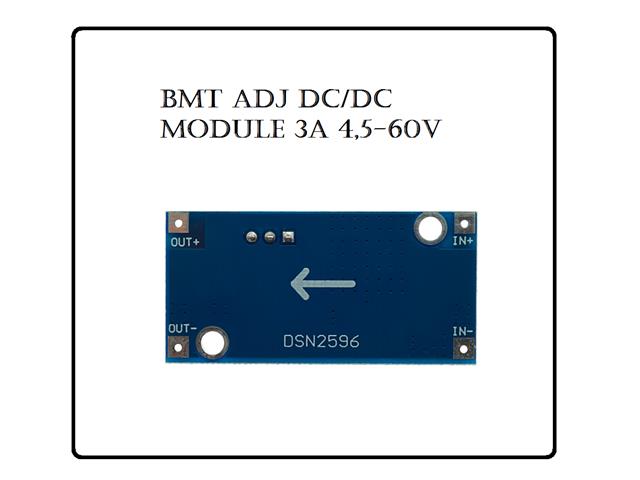

BMT ADJ DC/DC MODULE 3A 4,5-60V

SKU: BMT ADJ DC/DC MODULE 3A 4,5-60V

BRAND: Communica

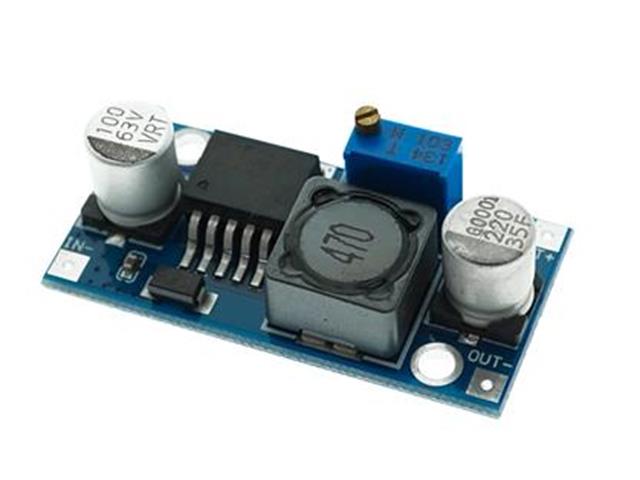

48V DC-DC LM2596HV 4.5-60V Adjustable LM2596 Step-Down Module, (Note: Higher than 50v can not work for a long time)

Overview

Features

Specification

  • The length is 45x Wide 24x High 11mm (Including Potentiometer)
  • Input Mode: IN+ Input Positive, In- Input Negative
  • Output Mode: OUT+ Output Positive, OUT-Output Negative
  • The Input Voltage: 4.5-60V (Note: Higher Than 50V Can Not Work For A Long Time)
  • Adjustment Mode: Firstly connect the Input Power Supply (Between 5-60V) and then use the Multimeter to Monitor the Output Voltage and Adjust the Potentiometer (Generally Turn the Booster Clockwise, Reverse the Buck)
  • Output Voltage: (3-35V) Continuously Adjustable (No-load Debugging is Recommended).
  • Pressure Difference: At Least 1.5V
  • Output Current: Rated Current 2A, No more than 3A
  • Output Power: No more than 15W
  • Conversion Efficiency: 92% Or less (The higher the Output Voltage, the Higher the Efficiency), Static Power Consumption is only about 6MA
  • Connection Mode: Welding, After add pin can be directly welded on the PCB
  • Working Temperature: Industrial Grade (- 40 TO + 85 )
  • Load Regulation: ± 1%
  • Voltage Regulation: ± 0.5%
