DGM RELAY BOARD 8CH RS232 CONTRO

SKU: DGM RELAY BOARD 8CH RS232 CONTRO

BRAND: Communica

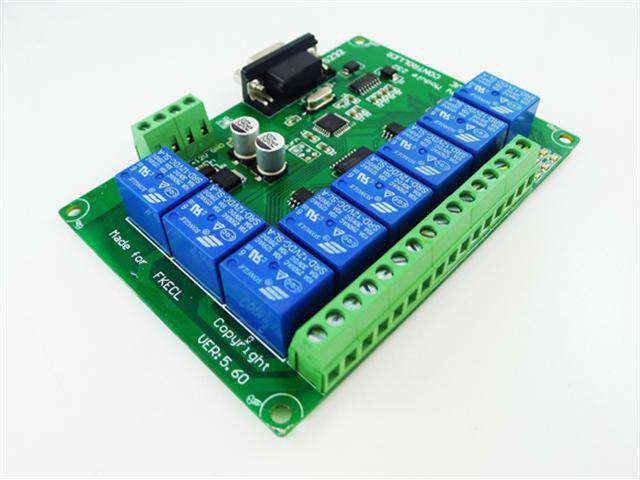

Relay Board 12V 8CH with RS232 Serial Control Mounted in DIN Rail housing

Overview

RS232 Serial port control DC 12V 8 CH relay Board module computer control switch standard guide rail installation

Features

  • A serial port control 8 road Relay Module
  • Installation method : standard guide rail installation
  • PCB size : 122.6x87.6x20mm
  • guide rail size : 145x90x40mm
  • The Power Supply Voltage : DC12V
  • Supply Current : max 350mA
  • Contact capacity : AC250V10A DC30V10A
  • Output instructions : 8 channel relay output with LED indicator Lamp, at any time to master the working state of the relay.
  • Communication Protocol : the RS 232 protocol communication, baud rate 9600, 8 data bits, one stop bit, no check bit.Each data frame contains 8 bytes. Two-way transfer number.

Specification
