HKD 12V SOLAR HEAT WATER PUMP BK

SKU: HKD 12V SOLAR HEAT WATER PUMP BK

BRAND: Communica

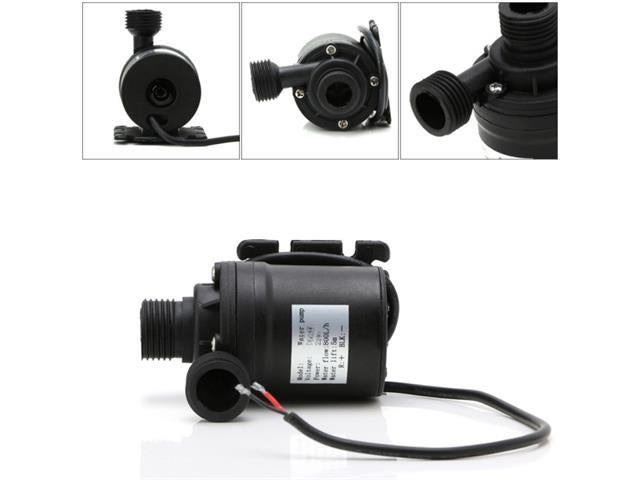

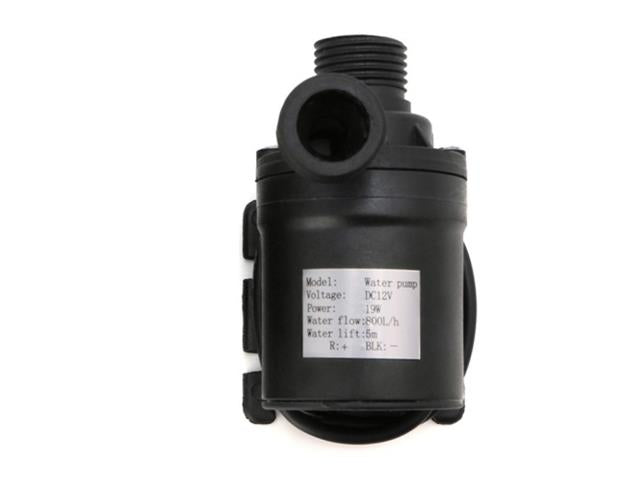

DC 12V 800L/H Solar Heat Water Pump Black

Solar Water Pump

Features

  • Uses advanced electronic components and high-quality wear-resistant shaft.
  • Long working life, continuous power-on working time of more than 10,000 hours.
  • It is smooth operation, high efficiency, good performance.
  • Small volume, low noise, safety and environmental protection.
Usage:

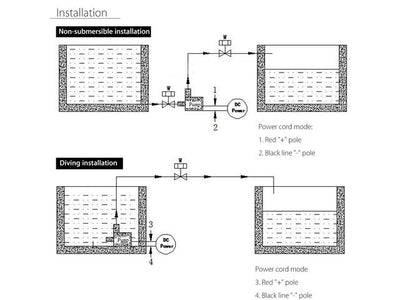

  • The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally.
  • (Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases. No diving without self-priming function, prohibit no water free.)
Common Troubleshooting:
  • The pump flow is reduced or no water. (The pump chamber can be disassembled for cleaning).
  • Tland use when the pump does not run water. (There is air in the pump or in the pipeline.)
Note:
  • Do not take the wrong pump positive and negative.
  • Prohibit not through the power converter will be connected directly to the 220V power supply pump.
  • Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.
  • The pump is suitable for medium temperature 1 ℃ -60 ℃.
Package included:
  • 1 x Motor Water Pump

Specifications

  • Materials: ABS

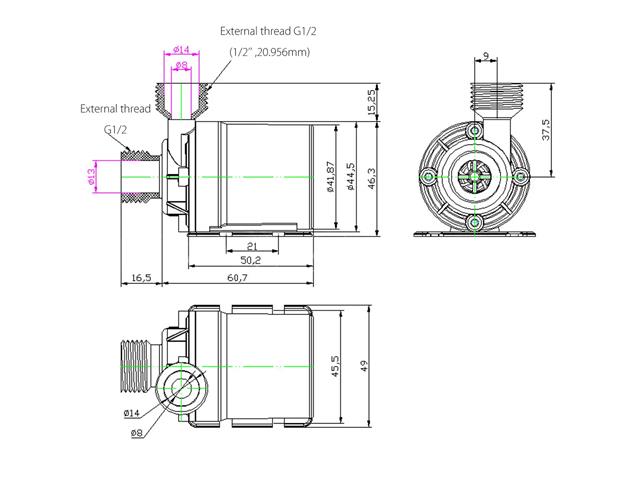

  • Inlet/Outlet: 4mm male Threaded port
  • Voltage & Power: DC 12V 19W
  • Flow Rate: 800L/h(m3/h)
  • Max Water lift: 5 meter

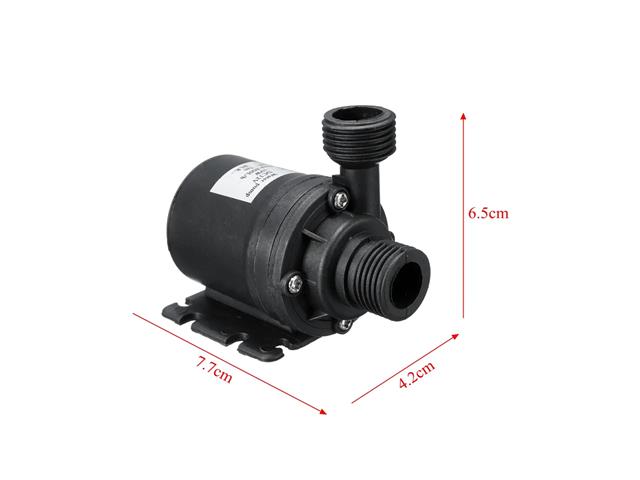

  • Sizes: About 7.7cm(L) x 4.2cm(W) x 6.5cm(H)
  • Working environment temperature: 1-60℃
  • Noise: <40 db (water) under operation
  • Drive mode: electromagnetic
  • Conveying medium: hot water pump
  • Pump shaft position: horizontal
  • Impeller structure: open impeller
  • Impeller suction method: single suction type

Additional Information

Device Pump
Type Solar | Water
