HKD 4XDOT MATRIX MODULE MAX7219 - Displays - BMT 4XDOT MATRIX MODULE MAX7219

HKD 4XDOT MATRIX MODULE MAX7219

Name: HKD 4XDOT MATRIX MODULE MAX7219 - Communica [Part No: HKD 4XDOT MATRIX MODULE MAX7219]
Brand: Communica
SKU: HKD 4XDOT MATRIX MODULE MAX7219
Price: 95.65 ZAR
Availability: OutOfStock

SKU: HKD 4XDOT MATRIX MODULE MAX7219

BRAND: Communica

Sold Out
R 110.00_{(inc VAT)}
R 95.65_{(ex VAT)}

Collections: IoT, Internet of things

Type: Displays

Category: Dot Matrix LED Display, Iot

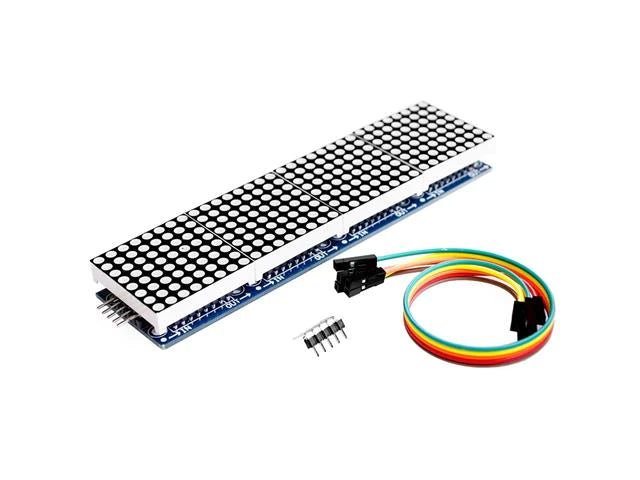

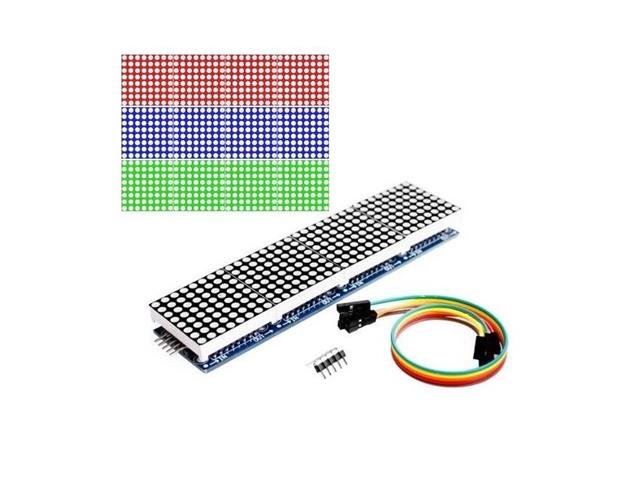

Four Dot Red Matrix Display 32X8 Using MAX7219 Driver

Four Dot Red Matrix Display

Features

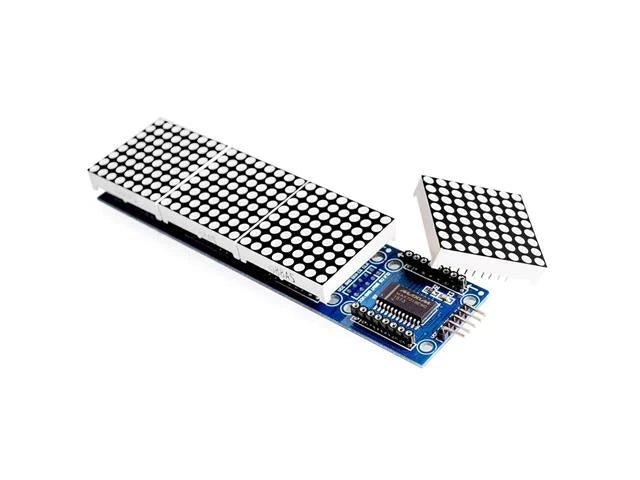

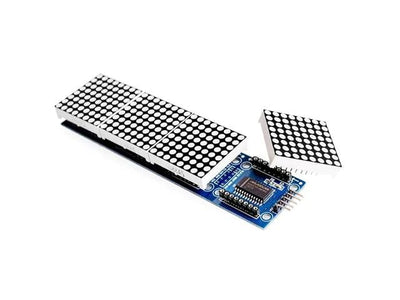

A Single Module CAN DRIVE A 8×8 Dot Matrix Common Cathode
Colour: Red
Module Operating Voltage: 5V
Module Size: Length 12.8 CM X 3.2 CM Wide and 1.3 CM HIGH X
With 16 Fixing Screw Holes, Diameter 3mm
Module with Input and Output Interfaces, Support for Cascading Multiple Modules

Wiring:

The left side of the module is the input port, and the right is the output port.
Control of a single module, the input port only need to receive CPU.
The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
For example : 51 SCM

VCC-5V
GND-GND
DIN-P2.2
CS-P2.1
CLK-P2.0

Package Included:

1 x MAX7219 Dot Matrix Module
1 x 5pin Dupont Cable

Downloads

Datasheet - MAX7219

Additional Information

Device	Matrix Display
Type	Four Dot \| Red

Illuminate your projects with the HKD 4XDOT MATRIX MODULE MAX7219, a versatile 32x8 red dot matrix display perfect for electronics enthusiasts. Operating at 5V, this module supports cascading multiple displays, making it ideal for creating stunning visual effects. With easy installation and robust build quality, it’s the ultimate choice for DIY projects and professional applications alike.
