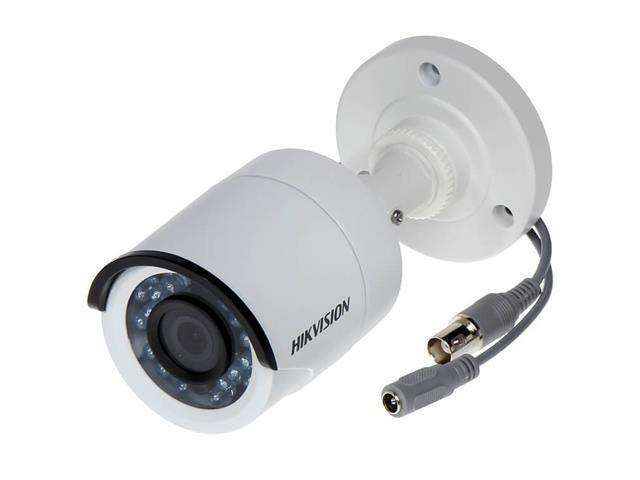

HKV DS-2CE16D0T-IRF

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night
• Smart IR
• Up to 20m IR distance
• IP66 Weatherproof
• Switchable TVI/AHD/CVI/CVBS

Camera

• Image Sensor
• 2MP CMOS Image Sensor
• Signal System PAL/NTSC
• Effective Pixels 1920 (H) × 1080 (V)
• Min. illumination 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR
• Shutter Time 1/25 (1/30) s to 1/50,000 s

Lens

• 2.8 mm, 3.6 mm, 6 mm optional
• Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
• Mount : M12
• Day & Night : ICR
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
• Synchronization : Internal synchronization
• Video Frame Rate : 1080p@25fps/1080p@30fps
• HD Video Output : 1 analog HD output
• S/N Ratio : >62 dB

General

• Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
• Power Supply 12 V DC±15%
• Power Consumption Max. 4 W
• Protection Level IP66
• IR Range Up to 20 m
• Dimensions F 70 mm × 154.5 mm (F 2.76" × 6.08")
• Weight 400 g (0.88 lb.)

Datasheet - HKV DS-2CE16D0T-IRF
