Hikvision ColorVu Turret Outdoor Camera, 2MP 2.8mm Lens, 20m, Res:1920×1080, OSD menu, 3D DNR, True WDR, (4 signals switchable TVI/AHD/CVI/CVBS), Image Mode: STD/HIGH SAT, 12VDC, Brightness, Sharpness, 3D DNR, Mirror, Smart light , IP67

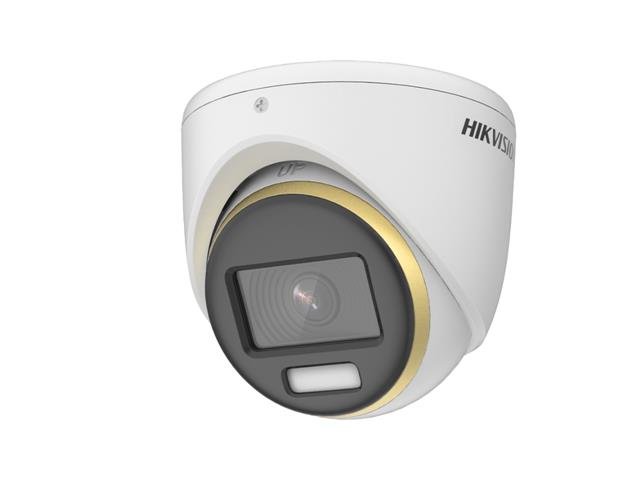

ColorVu Turret Outdoor Camera
Feature(s)
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Specifications
Camera
- Image Sensor : 2 MP CMOS
- Signal System : PAL/NTSC
- Resolution : 1920 (H) × 1080 (V)
Frame Rate
- TVI: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Slow Shutter Max. : 16 times
- Lens : 2.8 mm Fixed Lens
- Field of View : 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°Lens Mount M12
- Light Alarm : Solid Light Alarm (White Light)
- Day & Night : Color
- WDR (Wide Dynamic Range) : ≥130 dB
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Menu
- White Light : Auto/Off
- Image Mode : STD/HIGH-SAT/HIGHLIGHT
- AGC : Yes
- Day/Night Mode : Color
- White Balance : Auto/Manual
- AE (Auto Exposure) Mode : WDR, BLC, HLC, Global, HLS
- Privacy Mask : 4 programmable privacy masks
- Motion Detection : 4 programmable motion areas
- Noise Reduction : 3D DNR/2D DNR
- Language : English
- Function : Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light
- Lighting Mode : White Light
Interface
- Video Output : Switchable TVI/AHD/CVI/CVBS
General
- Operating Conditions : -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply : 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera.
- Consumption : Max. 2.9 W
- Protection Level : IP67
- Material : Metal
- White Light Range : Up to 20 m
- Communication : HIKVISION-C
- Dimension : Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05")
- Weight Approx. : 311.5 g (0.69 lb.)
