RK 50-877/5M

Name: RK 50-877/5M - Communica [Part No: RK 50-877/5M]
Brand: Belden Lumberg
SKU: RK 50-877/5M
Price: 1535 ZAR
Availability: InStock

SKU: RK 50-877/5M

BRAND: Belden Lumberg

In Stock
R 1,765.25_{(inc VAT)}
R 1,535.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: E Series

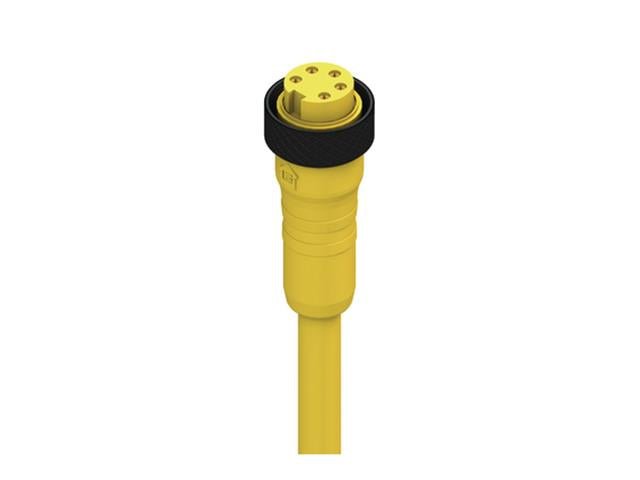

Cordset - Power 7/8" Female Stright. 5 Pole UL Single End - 5M Type Yellow Cable 5 x 1,5mm². Conductors 9,4mm OD. 8A 600VAC IP67

5 Pole Single Ended Cordset

Specifications

Product Family : Power
Product Sub Family : 7/8"
Connector Type : Cordset, single ended
Type of Contact / Gender : Female
Connector Design : straight
Number of Pins : 5
Coding : A
Shielding : Unshielded
Attachment Type : Coupling nut
Rated Voltage : 600 V
Rated Voltage (UL) : 600 V
Rated Current* : 8 A
Rated Current (UL)* : 8 A
Ambient Temperature (Operation) : - 30 °C - + 90 °C
Protection Degree / IP Rating : IP65, IP67, NEMA 6P

Materials

Contact Base Material : CuZn
Contact Plating : Au over Ag
Contact Bearer Material : TPU
Contact Bearer Color : Yellow
Molded Body Material : TPU
Molded Body Color : Yellow
Attachment Material : Al

Cable Data

Cable Number : 877
Conductor Size : 16 AWG (65/34)
Number of Wires : 5
Minimal Bending Radius (Flexible Inst) : ? 10 x D
Conductor material : Stranded, BC
Cable Jacket Material : TPE
Cable Jacket Color : Yellow
Cable Diameter D : Ø 9.4 mm
Wire Insulation Material : PVC-Nylon
Insulated Wire Diameter : Ø 2.5 mm
Ambient Temperature (Fixed Installation) : -30 °C to +90°C
UL Cable Type : TC-ER (90°C Dry / 75°C Wet) 600 V
Flammability Class (Cable Jacket) : FT4 / IEEC 1202
Cable Characteristics : Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex

Downloads

Datasheet - RK 50-877/5M

Additional Information

Device	Cordset
Type	5 Pole \| Single Ended
