SME RBOARD-ATMEGA328 +4CH RELAYS

Name: SME RBOARD-ATMEGA328 +4CH RELAYS - Communica [Part No: SME RBOARD-ATMEGA328 +4CH RELAYS]
Brand: Communica
SKU: SME RBOARD-ATMEGA328 +4CH RELAYS
Price: 320.18 ZAR
Availability: OutOfStock

SKU: SME RBOARD-ATMEGA328 +4CH RELAYS

BRAND: Communica

Sold Out
R 368.21_{(inc VAT)}
R 320.18_{(ex VAT)}

Collections: IoT, Internet of things

Type: Relay Boards

Category: 4 Channel Relay Boards, Iot

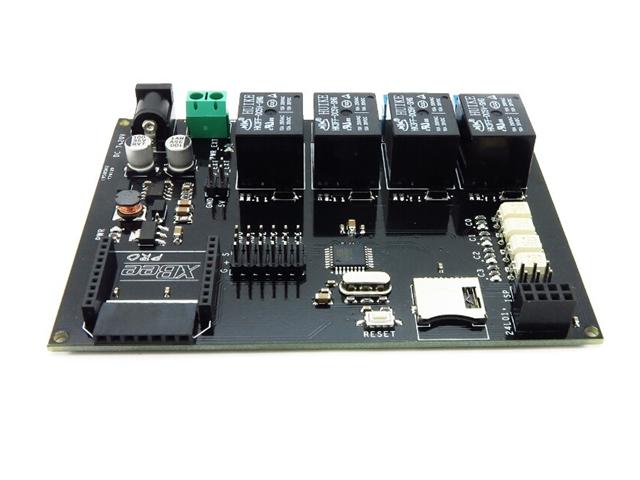

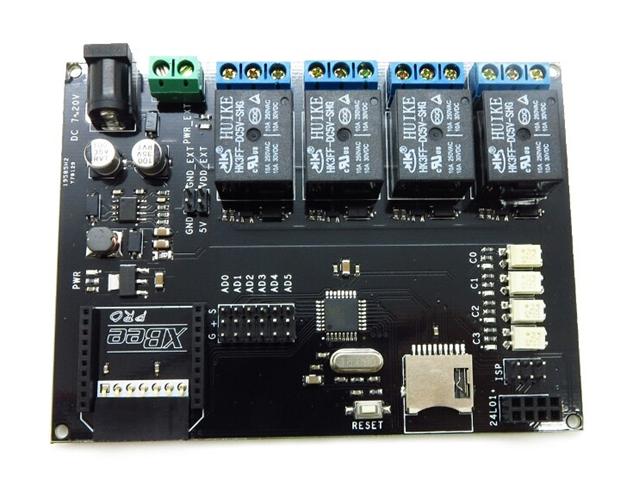

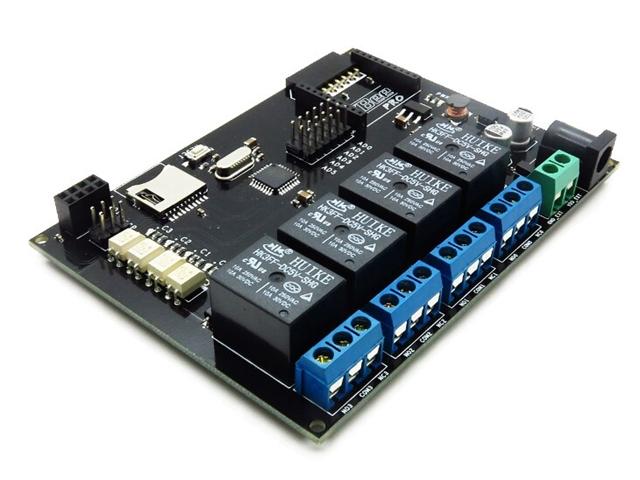

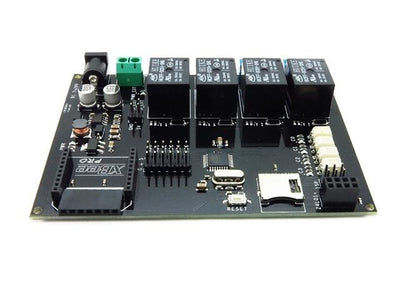

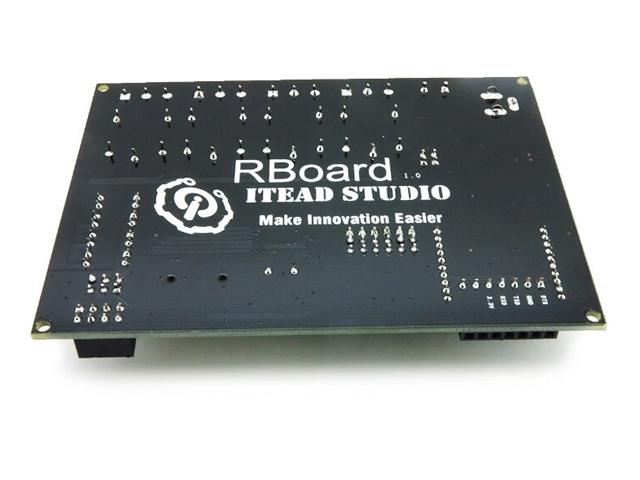

Arduino Relay Board with 4 channels Isolated Relays, XBee Socket and an ATMega328

Overview

Rboard is a unique Arduino board which features 4 channels isolated relays, an XBee socket, and an ATMega328. This board will add relay control as well as wireless connectivity to your projects. It’s great for anything from home automation to robot control. The possibilities are endless

Features

4 Optocoupler Isolated Channels
4 Mechanical Relays with Status Indicator LED
Both “NC” and “NO” ports for each Relay
ATMega328P with XBee Interface Headers
Micro SD socket
With Arduino Duemilanove bootloader

Specification

Microcontroller	ATMega328P
Max Frequency	16MHz
RAM Capacity	2K
FLASH Capacity	32K
External Resources	Onboard SD socket Electronic Brick Interface
Power Supply	External 12V External 24V External 5V External 7V External 9V
I/O Operation Level	3.3V
Board Size	79mm X 106mm
Version	1.0
Weight	80.00g

Downloads

Datasheet Download

Shematic
