UBQ LTU-LR

SKU: UBQ LTU-LR

BRAND: Ubiquiti

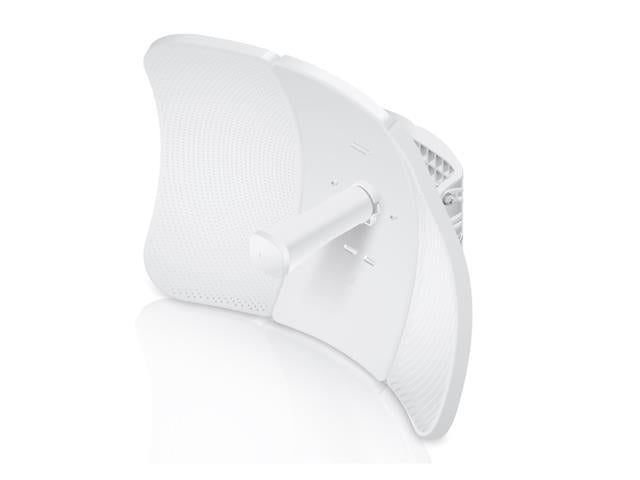

Ubiquiti 5.8GHz LTU LR 26dBi Long Range CPE

5 GHz PtMP LTUTM Long-Range Client Radio

Overview

The Ubiquiti LTU Long-Range features a 26dBi antenna with a high power inner-feed, designed for long-range applications. The Ubiquiti LTU Long-Range (LR) is a 5 GHz subscriber station that functions as a Customer Premises Equipment (CPE) in a Point-to-MultiPoint (PtMP) environment beside the LTU Rocket as the base station. The LTU Long-Range is not impeded by the limitations of standard 802.11 Wi‑Fi technology, providing 600 +Mbps TCP/IC throughput and a modulation rate of 4096 QAM. Utilizing frequency split, the LTU LR directs RF energy in a tighter beamwidth. With the focus in one direction, the LTU LR blocks or spatially filters out noise to improve noise immunity.

Specifications

  • Dimensions : 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
  • Weight With Mount
    • 1.360 kg (2.998 lb)
    • 1.735 kg (3.825 lb)
  • Networking Interface : (1) 10/100/1000 Ethernet Port
  • Enclosure : Outdoor UV Stabilized Plastic
  • Max. Power Consumption : 8.5W
  • Power Supply : 24V, 0.5A Gigabit PoE Adapter (Included)
  • Power Method : 24V Passive PoE (Pairs 4, 5+; 7, 8-)
  • Voltage Range : 22 - 26V
  • Max. Conducted TX Power : 22 dBm (per Chain)
  • Gain : 26 dBi
  • Mounting : Pole-Mount (Kit Included)
  • Wind Loading : 550 N @ 200 km/h (123.6 lbf @ 125 mph)
  • Wind Survivability : 200 km/h (125 mph)
  • ESD/EMP Protection : ± 24kV Contact/Air
  • Operating Temperature : -40 to 60° C (-40 to 140° F)
  • Operating Humidity : 5 to 95% Noncondensing
  • Certifications : CE, FCC, IC

Downloads

Additional Information

Device Client Radio
Type 5 GHz | PtMP | LTUTM | Long-Range
