Clamp Meter Digital 600V AC/DC 600A AC Resistance 60MΩ, FREQ:10Hz~10MHz, CAP:60mF, Display Count 6000, Auto Range, Jaw Capacity 28mm, Diode, Data Hold, NCV, Auto Power Off, Continuity Test, Low Bat Indication, CATIII 300V
Clamp Meter Digital 600V
Features
True RMS
LCD backlight
Large screen and display digits
60mF large capacitance measurement (UT202A+/UT204+)
Neutral/live wire test (UT202A+/UT204+)
Specifications
Specifications
Range
UT202A+
AC current (A)
400A
600A
±(2%+10)
AC current frequency (Hz)
50Hz~100Hz
±(1%+5)
DC current (A)
400A
600A
AC voltage (V)
600V
±(0.8%+5)
AC voltage frequency(Hz)
10Hz~10kHz
±(1%+5)
10Hz~60kHz
DC voltage (A)
600V
±(0.5%+2)
Resistance (Ω)
40MΩ
60MΩ
±(0.8%+2)
Capacitance (F)
4mF
40mF
60mF
±(4%+5)
Temperature (℃)
-40℃~1000℃
Frequency (Hz)
10Hz~10MHz
±(0.1%+4)
Features
Display count
6000
Auto range
Yes
Jaw opening
28mm
True RMS
Yes
NCV
Yes
Live wire test
Yes
Continuity test
Yes
Diode
Yes
MAX/MIN
Yes
Relative mode
Yes
Zero mode
Data hold
Yes
Low battery indication
Yes
Auto power off
Yes
General Characteristics
Power
1.5V battery (R03) x 2
Display
37mm x 25mm
Product color
Red and grey
Product net weight
248g
Product size
215mm x 63mm x 36mm
Standard accessories
Batteries, test leads, Themocouple
Standard individual packing
Gift box, Carring bag, English manual
Additional Information
Device
Clamp Meter
Type
Digital | 600V

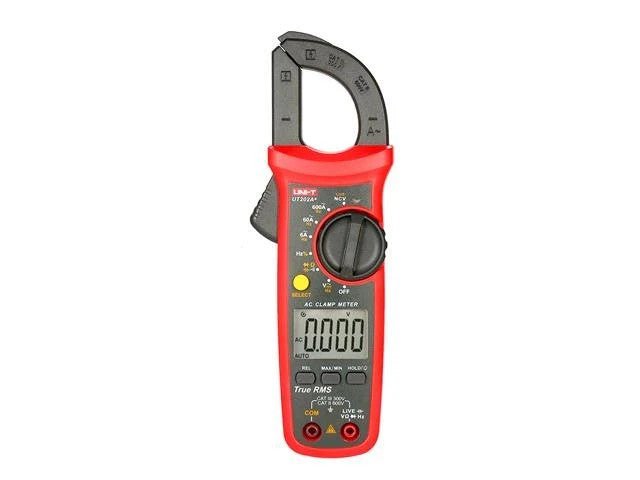

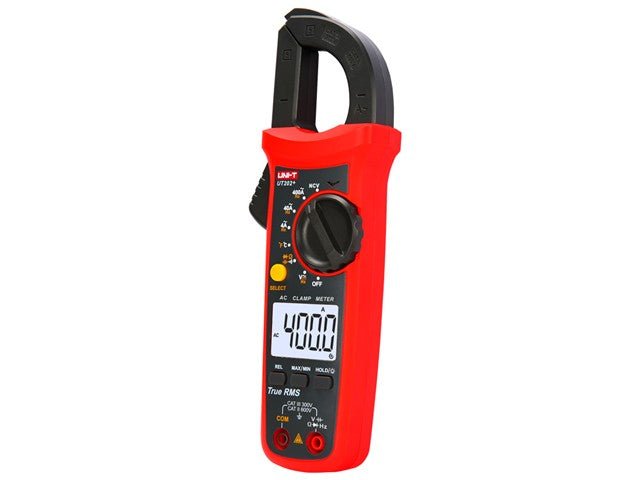

Experience precision and versatility with the UNI-T UT202A+ Digital Clamp Meter. Measuring up to 600V AC/DC and 600A, this true RMS meter features a large LCD display, auto range, and a 28mm jaw capacity for easy use. Perfect for electricians and DIY enthusiasts, it offers functions like non-contact voltage testing, capacitance measurement, and continuity checks, ensuring you have all the tools needed for accurate electrical diagnostics.
