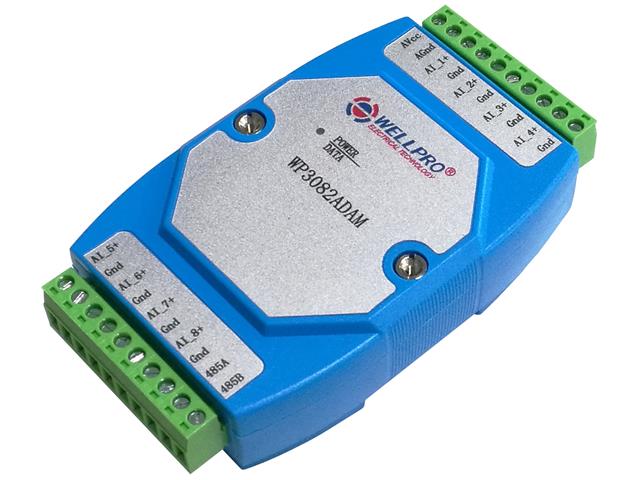

WP3082ADAM
SKU: WP3082ADAM
BRAND: Wellpro
R 1,405.40 (inc VAT) R 1,222.09 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
RS485 MODBUS RTU Standard Communication Protocol - Eight Current Input Channel: DC0~20mA / DC4~20mA
Standard Modbus RTU Communication Protocol
Features
Eight current input channel: DC0~20mA / DC4~20mA
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication status LED
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
Specifications
Analog input channel 8ch
Analog input range DC0~20mA / DC4~20mA
Analog input accuracy ±0.02mA
Working temperature -20~70℃
External power supply DC9V~30V/2W
Isolation protection DC1500V
Installation method Standard DIN slide rail or screw
Dimension 125×73×35mm
Pin Function
AVcc : External power supply input positive
AGnd : External power supply input negative / Power ground
AI_1+: Current input channel 1 positive
Gnd : Current input channel negative / Common analog ground
AI_2+ : Current input channel 2 positive
Gnd: Current input channel negative / Common analog ground
AI_3+: Current input channel 3 positive
Gnd: Current input channel negative / Common analog ground
AI_4+: Current input channel 4 positive
Gnd : Current input channel negative / Common analog ground
AI_5+: Current input channel 5 positive
Gnd: Current input channel negative / Common analog ground
AI_6+: Current input channel 6 positive
Gnd: Current input channel negative / Common analog ground
AI_7+: Current input channel 7 positive
Gnd : Current input channel negative / Common analog ground
AI_8+ : Current input channel 8 positive
Gnd : current input channel negative / Common analog ground
485B : RS485 signal B-
485A : RS485 signal A+
Downloads
Additional Information
Unlock seamless industrial communication with the WP3082ADAM, featuring eight current input channels (DC0~20mA / DC4~20mA) using the RS485 MODBUS RTU protocol. Designed for reliability, it offers thunder protection and interference immunity, ensuring accurate signal collection and control. Perfect for integration with PLCs and touch panels, this compact device enhances your operational efficiency.
