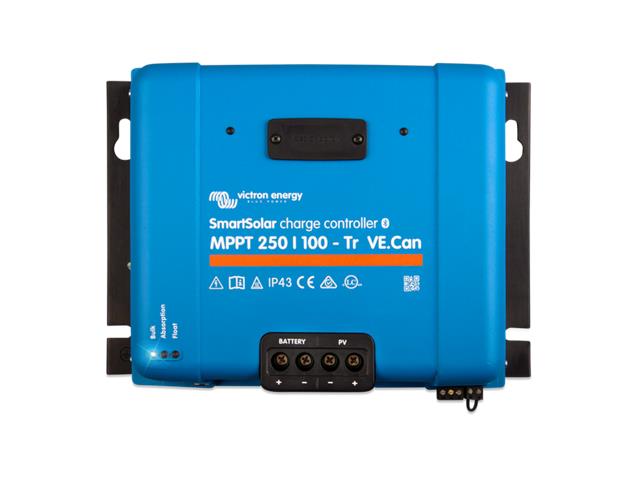

Victron smartsolar charge controller MPPT250/100 Tr VE.Can , 12-24-48V (36V: Manual) 100A , NORMAL PV 1a,b 12V@1450W , 24V@2900W , 36V@4350W , 48V@5800W , 35mm²/AWG2 , 216x295x103mm , IP43 , 4.5KG
Smartsolar Charge Controller
Feature
-
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast
MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers
and by up to 10 % compared to slower MPPT controllers.
-
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power (MPP) points may be present on the
power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative SmartSolar algorithm will always maximize energy harvest by locking to the
optimum MPP.
-
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 99 %.
-
Flexible charge algorithm
Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a
rotary switch (see manual for details).
-
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
-
Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
-
Internal temperature sensor and optional external battery voltage, temperature and current
sensing via Bluetooth
A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to
communicate battery voltage and temperature (and current, in case of a BMV 712 or a
SmartShunt) to one or more SmartSolar Charge Controllers.
-
VE.Direct or VE.Can
For a wired data connection to a Color Control GX, other GX products, PC or other devices.
-
Synchronized parallel charging with VE.Can or Bluetooth
Up to 25 units can be synchronized with VE.Can, and up to 10 units with Bluetooth.
-
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
-
VE.Can: the multiple controller solution
Up to 25 units can be synchronised with VE.Can.
-
Remote on-off
To connect for example to a VE.BUS BMS.
Programmable relay
Can be programmed to trip on an alarm,
or other events.
-
Optional: SmartSolar pluggable LCD display
Simply remove the rubber seal that protects
the plug on the front of the controller,
and plug-in the display.
Specifications
- Battery voltage:12/24/48 V Auto Select (36 V: manual)
- Rated charge current: 100 A
- Nominal PV power, 12 V 1a,b): 1450 W
- Nominal PV power, 24 V 1a,b): 2900 W
- Nominal PV power, 36 V 1a,b):4350 W
- Nominal PV power, 48 V 1a,b): 5800 W
- Max. PV short circuit current 2):70 A (max 30 A per MC4 conn.)
- Maximum PV open circuit voltage: 250 V absolute maximum coldest conditions
245 V start-up and operating maximum
- Maximum efficiency: 99 %
- Self-consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
- Charge voltage 'absorption': Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'float': Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
- Charge voltage 'equalization': Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
- Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
- Temperature compensation: -16 mV / -32 mV / -64 mV / °C
- Protection: PV reverse polarity / Output short circuit / Over temperature
- Operating temperature: -30 to +60 °C (full rated output up to 40 °C)
- Humidity: 95 %, non-condensing
- Maximum altitude: 5000m (full rated output up to 2000m)
- Environmental condition: Indoor, unconditioned
- Pollution degree :PD3
- Data communication: VE.Can, VE.Direct and Bluetooth
- Remote on/off: Yes (2 pole connector)
- Programmable relay :DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
- Parallel operation: Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
ENCLOSURE
- Colour: Blue (RAL 5012)
- PV terminals 3):35 mm2 / AWG2 (Tr models) Three pairs of MC4 connectors (MC4 models)
- Battery terminals: 35mm2 / AWG2
- Protection category: IP43 (electronic components), IP22 (connection area)
- Weight: 4,5 kg
- Dimensions (h x w x d) in mm: Tr models: 216 x 295 x 103 MC4 models: 246 x 295 x 103
STANDARDS
- Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
- 1a) If more PV power is connected, the controller will limit input power.
- 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
- 2) A PV array with a higher short circuit current may damage the controller.
- 3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels
- Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker)
