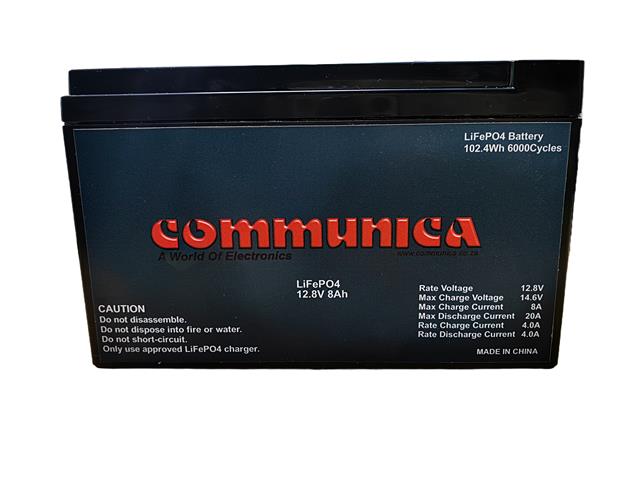

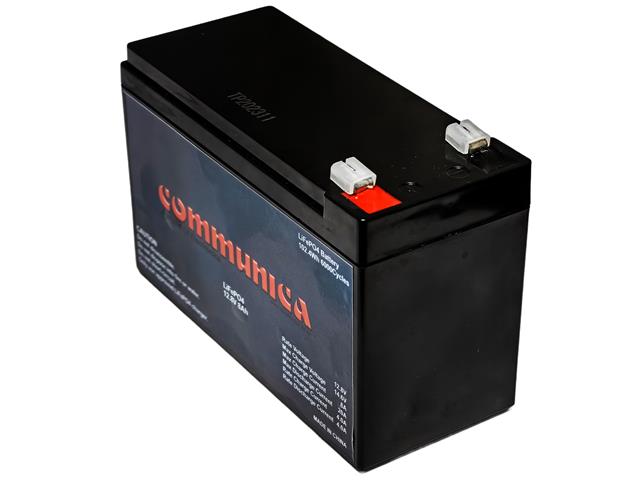

BATT 12,8V8 COM

Name: BATT 12,8V8 COM - Communica [Part No: BATT 12,8V8 COM]
Brand: Communica
SKU: BATT 12,8V8 COM
Price: 652.18 ZAR
Availability: InStock

SKU: BATT 12,8V8 COM

BRAND: Communica

In Stock
R 750.01_{(inc VAT)}
R 652.18_{(ex VAT)}

Collections: New Arrivals, Power

Type: Batteries

Category: Lithium Ion Rechargeable Battery, New

Lithium Ion Rechargeable Battery (LiFePO4) 12.8V 8AH 102.4Wh, High Cycle Life:<6000 at 80%DOD, Max Discharge Current:20A, Max Charge Current:8A, Built-in-BMS, End of Discharge Voltage:10.5V, F1 Terminal 4.8mm, 151x65x95mm, IP56, 0.94Kg. 1 Year Warranty

12.8V Lithium Ion Rechargeable Battery

Specifications

Nominal Characteristic

Nominal voltage : 12.8V
Typical capacity : 8Ah(25°C,0.2C)
Typical energy : 102.4Wh
Cells type/chemistry : Prismatic-LiFePO4
Gravimetric Energy density : 108.9Wh/Kg

Dimensions

Height : 94mm
Width : 65mm
Length : 151mm
Reference Weight : 0.94Kg
Case Material : ABS
Cycle life : >6000 cycles(80% DoD)

Electric Characteristics

Charge Method : CC/CV
Charge voltage Range : 14.3~14.6V
Max continuous Discharge Current : 20A
Max continuous Charge Current : 8A
Discharge Pulse Current (10 sec) : 40A
Standard charge current (0.2C) : 1.6A
End of Discharge Voltage : 10.5V

Operation Environment

Operating Temperature : -20°C~+70°C
Charge Temperature : 0°C~55°C
Discharge Temperature : -20°C~60°C
Storage Temperature : -10°C~50°C
Protection Class : IP56

Downloads

Datasheet - BATT 12,8V8 COM

Additional Information

Device	Battery
Type	12.8V \| Lithium Ion \| Rechargeable
