Dahua 5MP Bullet IP Camera Full-Colour Active Deterrence, 2.8mm Lens, Fixed, 40m IR, 1/2.7” CMOS (2592 × 1944)@1-20fps, IP67, 12V DC, UPTO:256GB MICRO SD, Built-in Mic, Tripwire; Intrusion, 288.4×94.4×84.7, 1kg
5MP Full-Colour Bullet IP Camera
Feature(s)
- 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in warm illuminator, and the max. illumination distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error,
network disconnection, IP conflict, illegal access, and voltage detection.

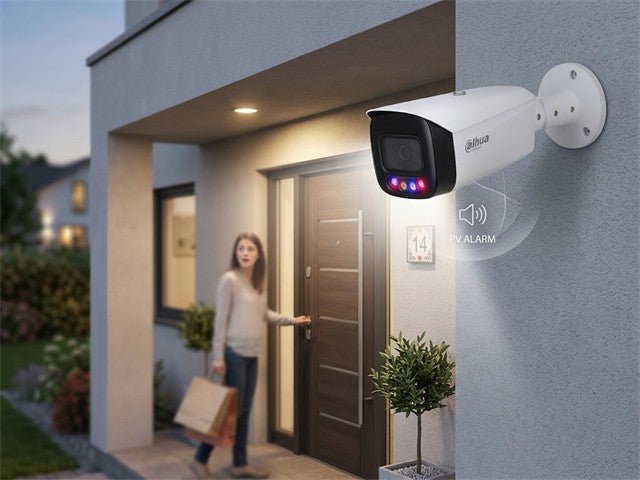

- Supports sound and light alarm linkage. When an alarm is triggered,
the camera links sound alarm and light flashing.
- Supports one-tap disarming. You can disarm the events of alarm
output, sending email, audio, and light in the configured period.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
- 12V DC/PoE power supply
- IP67 protection
SMD Plus

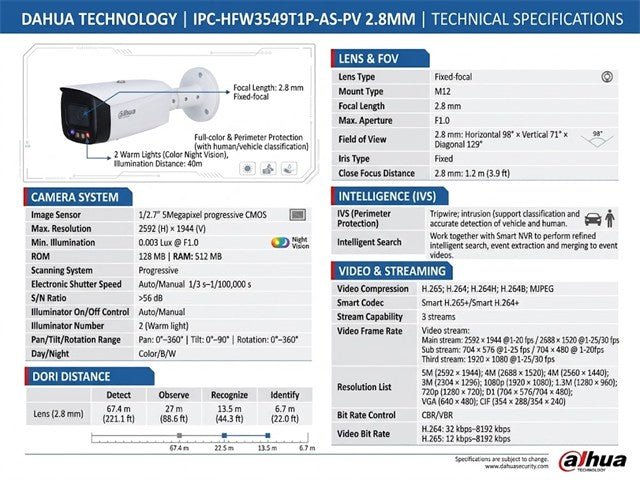

Specifications
Camera
- Image Sensor : 1/2.7”5Megapixel progressive CMOS
- Max. Resolution : 2592 (H) × 1944 (V)
- ROM : 128 MB
- RAM : 512 MB
- Scanning System : Progressive
- Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination : 0.003 Lux @ F1.0
- S/N Ratio : >56 dB
- Illumination Distance : 40 m (131.2 ft)
- Illuminator On/Off Control : Auto/Manual
- Illuminator Number : 2 (Warm light)
- Pan/Tilt/Rotation Range
- Pan: 0°–360°
- Tilt: 0°–90°
- Rotation: 0°–360°
Lens
- Lens Type : Fixed-focal
- Mount Type : M12
- Focal Length : 2.8 mm
- Max. Aperture : F1.0
- Field of View : 2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°
- Iris Type : Fixed
- Close Focus Distance : 2.8 mm: 1.2 m (3.9 ft)
DORI Distance
- Lens : 2.8 mm
- Detect : 67.4 m (221.1 ft)
- Observe : 27 m (88.6 ft)
- Recognize : 13.5 m (44.3 ft)
- Identify : 6.7 m (22.0 ft)
Professional, intelligent
- IVS (Perimeter Protection) : Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
- Intelligent Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
- Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Smart Codec : Smart H.265+/Smart H.264+
- Video Frame Rate
- Main stream: 2592 × 1944 @1-20 fps/ 2688 × 1520 @1-25/30 fps
- Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps
- Third stream: 1920 × 1080 @1-25/30 fps
- Stream Capability : 3 streams
- Resolution : 5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
- Bit Rate Control : CBR/VBR
- Video Bit Rate
- H.264: 32 kbps–8192 kbps
- H.265: 12 kbps–8192 kbps
- Day/Night : Color/B/W
- BLC : Yes
- HLC : Yes
- WDR : 120 dB
- Scene Self-adaptation : Yes
- White Balance : Auto/natural/street lamp/outdoor/manual/regional custom
- Gain Control : Auto/Manual
- Noise Reduction : 3D NR
- Motion Detection : OFF/ON (4 areas)
- Region of Interest (RoI) : Yes (4 areas)
- Smart Illumination : Yes
- Image Rotation : 0°/90°/180°/270° (Support with 2592×1944 resolution and lower)
- Mirror : Yes
- Privacy Masking : 4 areas
Audio
- Built-in MIC : Yes
- Audio Compression : PCM; G.711a; G.711Mu; G.726; AAC; G.723
Alarm
- Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)
Network
- Network : RJ-45 (10/100 Base-T)
- SDK and API : Yes
- Protocol : IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
- Interoperability : ONVIF( Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
- User/Host : 20 (Total bandwidth: 80 M)
- Storage : FTP; SFTP; Micro SD card (support max. 256 G); Dahua Colud; NAS
- Browser
- IE: IE8 and later
- Chrome
- Firefox
- Safari: Safari 12 and later
- Management Software : Smart PSS; DSS; DMSS
- Mobile Phone IOS; Android
Port
- Audio Input : 1 channel (RCA port)
- Audio Output : 1 channel (RCA port)
- Alarm Input : 1 channel in: 5mA 3V–5V DC
- Alarm Output : 1 channel out: 300mA 12V DC
Power
- Power Supply : 12V DC/PoE (802.3af)
- Power Consumption
- Basic power consumption: 2W (12V DC); 2.6W (PoE)
- Max. power consumption (H.265 + warm light + IVS + sound alarm + red and blue lights flash): 7.5W (12V DC); 8.8W (PoE)
Environment
- Operating Conditions : –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
- Storage Conditions : –40°C to +60°C (–40°F to +140°F)
- Protection Grade : IP67
Structure
- Casing : Metal + plastic
- Dimensions : 288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3") (L × W × H)
- Net Weight : 1.0 kg (2.2 lb)
- Gross Weight : 1.23 kg (2.7 lb)
