- Hardware

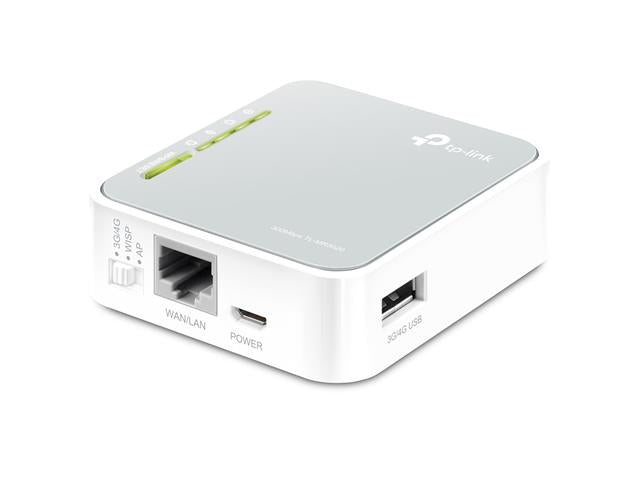

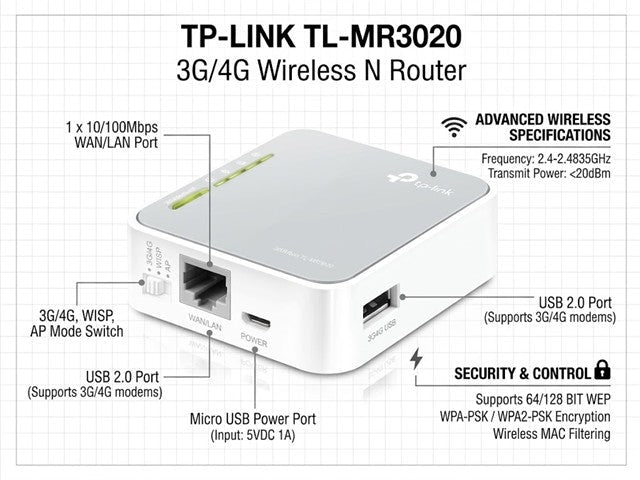

· Ports: 1 10/100Mbps WAN/LAN Port, 1 USB 2.0 Port, 1 Micro USB Port
· Buttons: WPS/Reset Button, Mode Switch
· Antennas: Internal Antennas
· External Power Supply: 5VDC/1A
· Dimensions (W x D x H): 2.9× 2.6×0.9 in. (74×67×22mm)
- Wireless
· Wireless Standards: IEEE 802.11b/g/n
· Frequency: 2.4GHz
· Signal Rate: 300Mbps
· Transmit Power: < 20dBm
· Reception Sensitivity:
2.4GHz:
270M: -70dBm@10% PER
130M: -73dBm@10% PER
108M: -74dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -95dBm@8% PER
· Wireless Function: Enable/Disable Wireless Radio, WMM, Wireless
Statistics
· Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
encryptions
- OTHERS
· Certification: CE, RoHS
· System Requirements: Microsoft Windows 98SE/NT/2000/XP/VistaTM/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
· Environment: Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
· Package Contents: 3G/4G Portable Wireless N Router TL-MR3020
Ethernet Cable
USB Cable
quick Installation Guide
- Software
· Quality of Service: WMM, Bandwidth Control
· WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
· Management: Access Control, Local Management, Remote Management
· DHCP: Server, DHCP Client List, Address Reservation
· Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
· Dynamic DNS: DynDns, NO-IP
· Access Control: Parental Controls, Local Management Control, Host List, White
List, Black List
· Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
· Protocols: IPv4, IPv6
· Guest Network: 2.4GHz guest network
