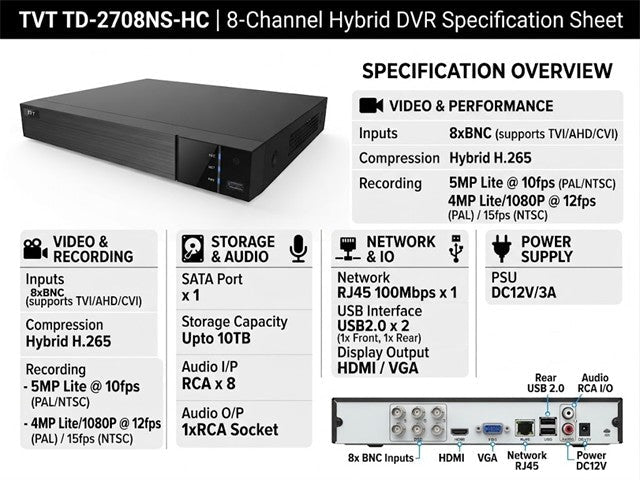

DVR 8CH Hybrid H.265, Video I/P 8xBNC,5MP Lite@10fps (PAL/NTSC), 4MP Lite/1080P@12fps(PAL)/15fps (NTSC), SATA×1, Upto 10TB, Audio I/P:RCA×8, O/P1xRCA Socket, TVI/AHD/CVI, RJ45 100Mbps×1, USB2.0×2, HDMI/VGA, PSU:DC12V/3A

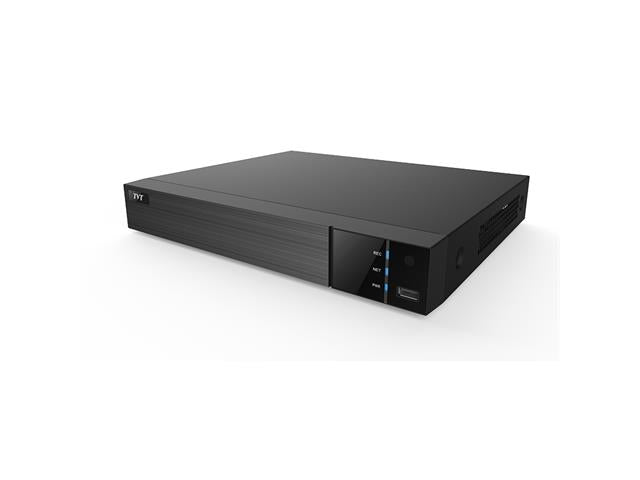

4/8CH Hybrid DVR
Overview
TD-2700NS-HC series are 4 / 8 CH 1080P high definition DVRs with
ability to connect analog and IP cameras simultaneously, which adopt the
standard H.265 high profile compression format and the most advanced
SOC technique to ensure real time recording in each channel and realize
outstanding robustness of the system. TD-2700NS-HC support 4 / 8 CH
video input, 4 / 8 CH audio input, simultaneous 4 / 8 CH playback.
The series of product can meet different security requirements of home,
financial, commerce, enterprise, transportation and government, etc.
Feature(s)
- 4 / 8 CH TVI / AHD/CVI 5MP / 4MP 1080P / 720P / WD1 video input
- 4 / 8 CH DVRs default support 2 / 4 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input by default
- 4/8CH analog video input can be switched to 4/8CH IP video input for 4/8CH DVR
- Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timed / motion /AI recording
- Playback : 4 / 8 CH simultaneously playback
- Search: time slice, time, event ( manual, motion ), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and
configuration
- Support remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log review and device status review
- 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
Additional Information
| Device |
DVR |
| Type |
4/8CH | Hybrid |
