BULLET Camera AHD, 2MP IR Water-proof, 1.3”CMOS, 1920x1080, 2.8mm Lens,20~30m IR, Day-Night, AHD/TVI/CVI/CBVS,WDR,2D DNR, Upto 1000TVL Resolution, 30fps(60Hz); 25fps(50Hz), PSU12V, IP67

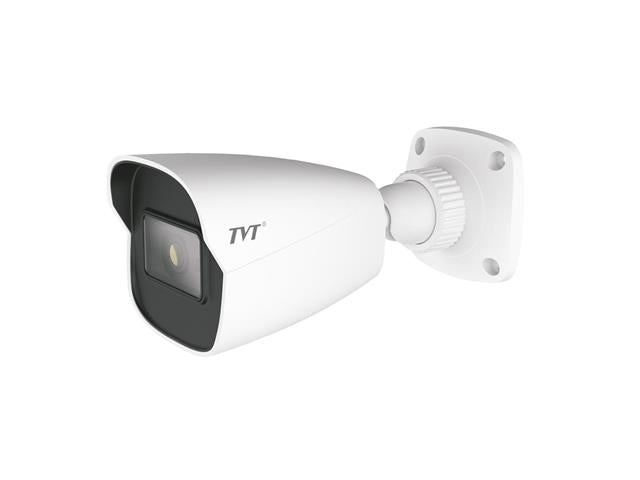

2MP HD Analog IR Bullet Camera
Feature(s)
- 1080P real-time image, high resolution, true color
- AHD / TVI / CVI lossless HD video output
- Support 960H CVBS output
- Up to 1000 TVL resolution
- CMOS progressive scan, perfectly capturing the moving object
- Support OSD menu
- High speed, long distance and real time transmission
- Auto color to B / W at low illumination
- Support ICR switch, true day / night
- Support noise reduction function
- 20 ~30m IR night view distance
- IP67
- Support COC
Specifications
Camera
- Image Sensor : 1 / 3 "CMOS
- Resolution : 2MP
- Image Size : 1920 x 1080
- Video Output : AHD / TVI /CVI/CVBS
- Image System : PAL / NTSC
- Electronic Shutter : Auto
- IR Distance : 20 ~30 m
- Frame Rate : 30fps(60Hz); 25fps (50Hz)
- Min. Illumination : 0.005lux@ F1.2, AGC ON; 0 lux IR
- Lens : 2.8mm
- Lens Mount : M12
- S / N Ratio : ≥52dB ( AGC OFF )
- Ingress Protection : IP 67
Functions
- Function Control : OSD ( COC Control )
- Smart IR : Yes
- Day & Night : ICR
- Digital WDR : Yes
- Digital DNR : Yes, 2D DNR
- AGC : Yes
- Auto White Balance : Yes
- BLC : Yes
- Front Light Compensation : NO
- Defog : NO
- HLC : Yes
- Sharpness : Yes
- Mirror : NO
- Image Setting : Yes
- Defect Correction : Auto
- Language : Chinese and English
- Angle Adjustment : Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
Others
- Power Supply : DC12V ( ± 10% )
- Power Consumption : IR OFF : < 1W; IR ON : < 3W
- Working Environment : - 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity)
- Dimensions ( mm ) : 167.6× 75.0× 74.6
- Weight ( net ) : Approx. 0.38KG
