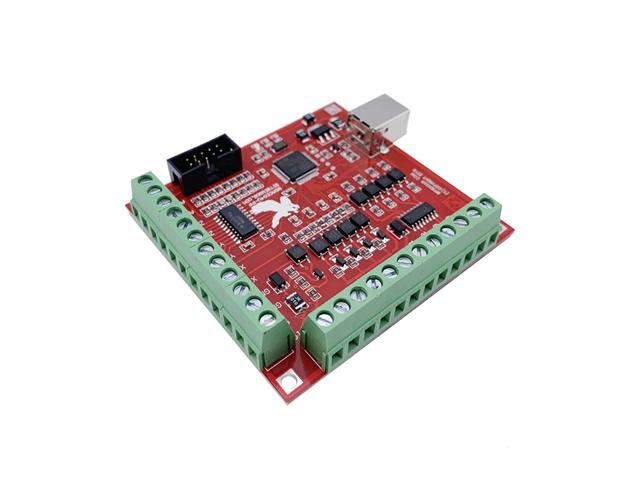

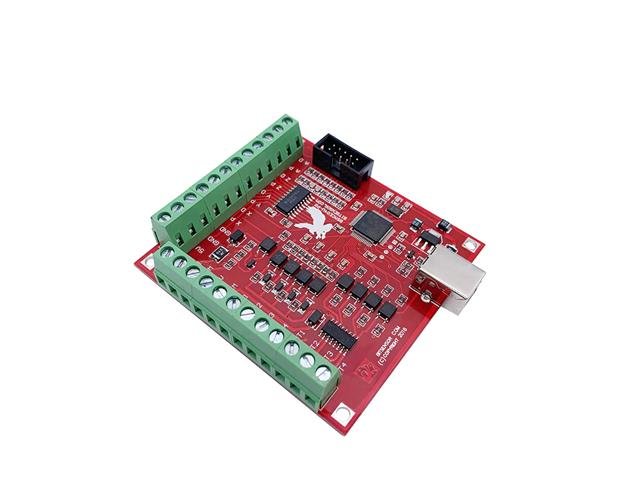

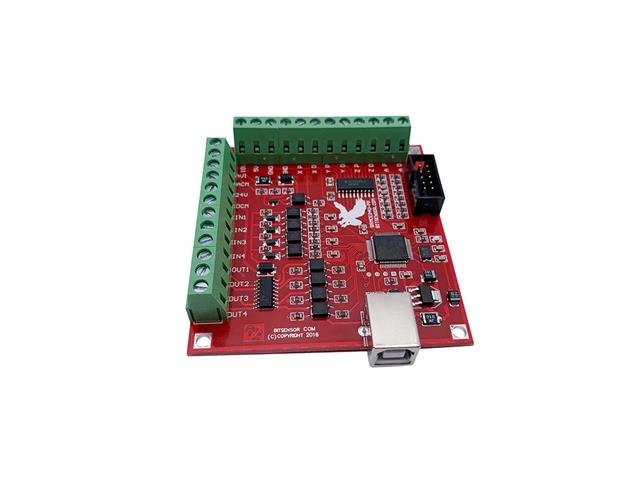

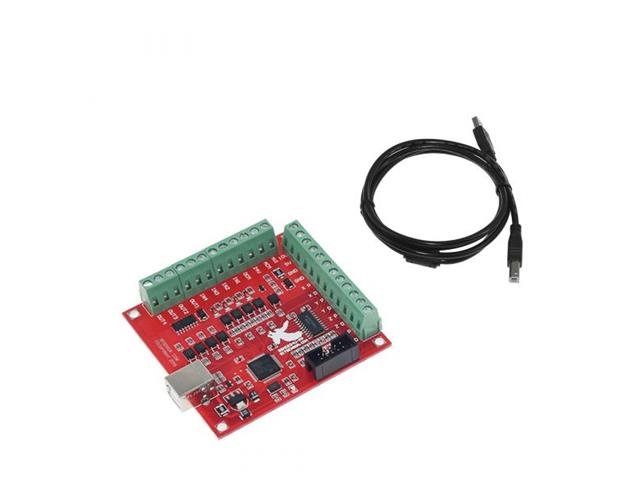

CMU 4 AXIS MACH3 USB STEPPER I/F

SKU: CMU 4 AXIS MACH3 USB STEPPER I/F

BRAND: Communica


Super USB Interface MACH3 100KHz Board. 4 Axis Interface Driver Motion Controller- 3D Printer/CNC

Interface Driver Motion Controller

Features

  • Support for 4axis linkage, you can connect four stepper motor drives or servo drives;
  • Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
  • Support automatic probe tool
  • Support Emergency input
  • Support for limit switch
  • Support for connecting electronic handwheel
  • Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable
  • Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
  • 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
  • 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device
  • 1 status LED, indicate connection status on the board

Additional Information

Device Motion Controller
Type Interface Driver
References

Software Link:
