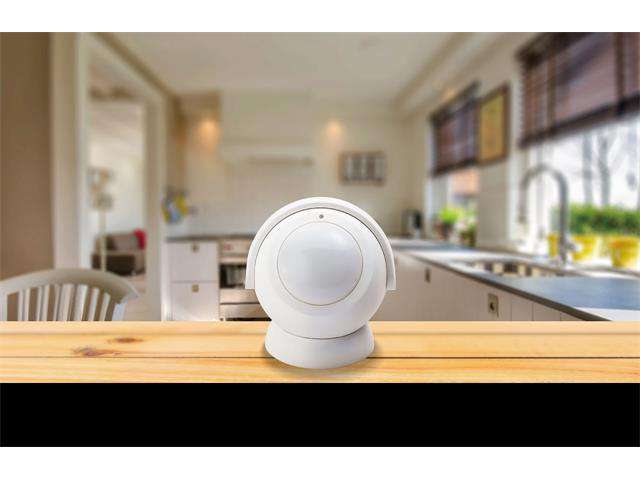

AIRLIVE PIR MOTION SENSOR SI-102

A snowball for protection/detection

The AirLive SI-102 is a very small and stylish PIR Motion detector. With its Max range of 8m and wide angle of 140 degree it is perfect for home use. It has a magnetic base which makes it easy to place in almost any locations and its low power usage makes for a long battery life. It's great for Home Security but also Automation. When triggered in Alarm mode it can sound the siren. But in Home Automation mode it can make life more easy for example by turning the light on at night.

Automation Life available

The Airlive SmartLife Plus app can be used to see the triggered events from the SI-102 PIR Sensor. Also Macro can be setup were by the SI-102 works in combination with one of the Airlive Z-Wave Actuators.

Secure your home 24/7

Place the PIR near a door and will work great for Security when the door is opened or someone walks through the door way the PIR sensor is triggered and the Alarm will sound. At the same time a Notification will also be sent to alert you something triggered the PIR Sensor.

• Z-wave Plus technology
• Works with Smart Home IoT kit
• Max. 8 meter motion detection distance
• 140 degree motion detection angle
• Angle adjustable and wall mountable
• AES 128 bit Z-wave encryption
• 1700mA CR123A lithium battery
• Tamper Proof Protection
• Low Battery indication

• Model : SI-102 Motion Sensor with cover Z-Wave Plus
• Z-Wave Standard : Z-wave plus
• Z-Wave Frequency : CE：868.40 MHz, 869.85 MHz
• FCC：908.40 MHz, 916.00 MHz
• JPN：922 MHz ~ 927 MHz
• Maximum transmission distance : 40 M（Indoor）
• Motion Detection Range : 8 Meter / 140 degree
• Power : Built-in Battery (CR123A 1700 mA)

Dimension and Environment

• Dimensions : 50(L) x 45.5(W) x 49.3(H) mm
• Operation Temperature : -10 ~ 40° C to have better PIR and battery performance
• Operation Humidity : 85% RH max

Standard Package

• Package Size : 11.2 x 11.2 x 6.3 cm
• Product Weight : 0.082 kg
• Package Weight : 0.153 kg
• Package Content : SI-102 x 1
