AJAX DOOR PROTECT

SKU: AJAX DOOR PROTECT

BRAND: Ajax


Wireless Indoor Magnetic Door/window Opening Detector Frequency:868.0~868.6MHz, 20x90mm, 29g

Door/window Opening Detector

Overview

DoorProtect

Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base.


Principle of operation

The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.

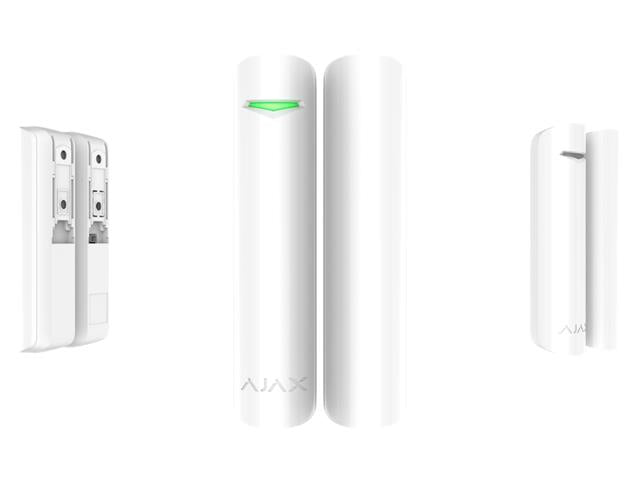

The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.


Installation and set up

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Specifications

  • Classification : Point magnetic and contact radio channel security detector
  • Type of detector : Wireless
  • Installation method : Indoors
  • Compatibility: Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
  • Sensing element : Reed switch
  • Alarm signal delivery time : 0.15 s

Activation threshold

  • Small magnet — 1 cm
  • Big magnet — 2 cm

Power supply

  • Battery: CR123A battery, 3 V
  • Battery life : Up to 7 years

Jeweller radio technology

  • Communication range with central unit — up to 1,200 m in an open space
  • Two-way communication between devices
  • Operating frequencies — 868.0-868.6 MHz
  • Self-adjusting RF output power — up to 20 mW
  • Block encryption based on AES algorithm
  • Detector polling period — 12−300 s

  • Temperature sensor : Available
  • Operating temperature range : From -10°С to +40°С
  • Permissible humidity : Up to 75%

Anti-sabotage

  • Protection against fraud
  • Jamming detection
  • Tamper-resistant

  • Remote setting and testing : +
  • Dimensions : Diameter: 20 mm
  • Height: 90 mm
  • Weight : 29 g
  • Warranty : Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set

  • DoorProtect opening detector
  • SmartBracket mounting panel
  • Two magnets
  • CR123A battery (pre-installed)
  • External contact
  • Installation set
  • User's guide

Downloads

Additional Information

Device Opening Detector
Type Door/window
