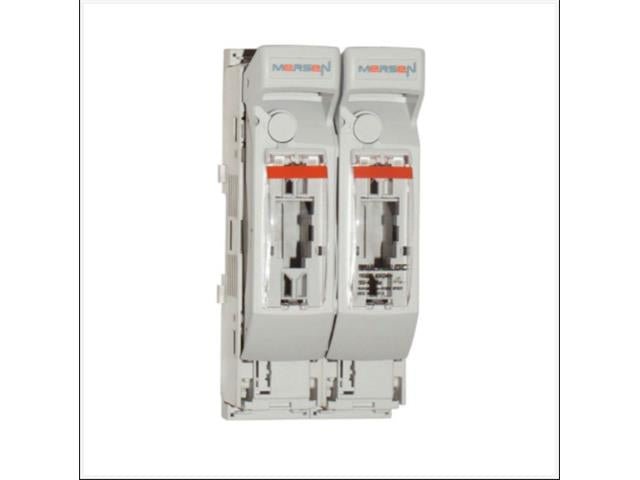

FUSE SWITCH DISCONNECT 2P 160A

SKU: FUSE SWITCH DISCONNECT 2P 160A

BRAND: Mersen


Fuse Switch Disconnect Multibloc Holder 2P 160A VAC:690VAC VDC:220VDC

Overview

 The production programme of MULTIBLOC® series 00.ST8 comprises NH fuse switch disconnectors for 160A. They are designed for bottom fitting/panel installation and are available in single pole, double pole and quadruple pole units. For installation of MULTIBLOC® NH fuse switch disconnectors in distribution units with central cover, respective covers are used to obtain a uniform profile in height and length. MULTIBLOC® size 00 are designed for NH fuse-links in accordance with IEC/EN 60269-2, VDE 0636-2, size 00, 160A. MULTIBLOC® offers the user the possibility of fast and easy installation as well as a high degree of security during installation and maintenance.

Suitable Fuse : NH00GG50V160

Features

Specification



    • Volts (VAC) : 690 VAC
    • Volts (VDC) : 220 VDC
    • Ampere (A) : 160 A
    • Size per Standard : 00
    • Mounting : Bottom Fitting/panel

SCCR

    • Ue = AC 400 V
    • Ie = 160 A 80kA Ue = AC 500 V
    • Ie = 160 A 80kA Ue = AC 690 V
    • Ie = 125 A 50kA

Number of Poles1

    • 1
    • 2
    • 4
    • Standards : IEC/EN 60 947-3 For NH-fuse links size 000/00 in accordance with IEC/EN 60 269-2, VDE 0636-2

Application

  • House incoming units
  • Meter distribution units
  • Measuring transformer cabinets
  • Transmitting stations for telecommunications
