Basic
|
|
Layer
|
Layer 2
|
|
Switching Capacity
|
4.8 Gbps
|
|
Packet Forwarding Rate
|
3.57 Mpps
|
|

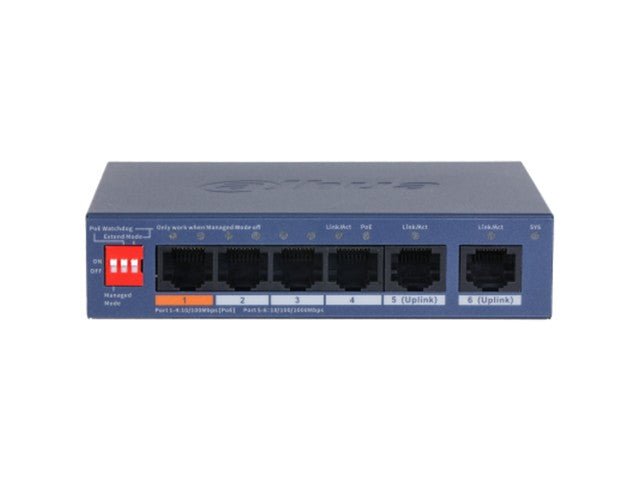

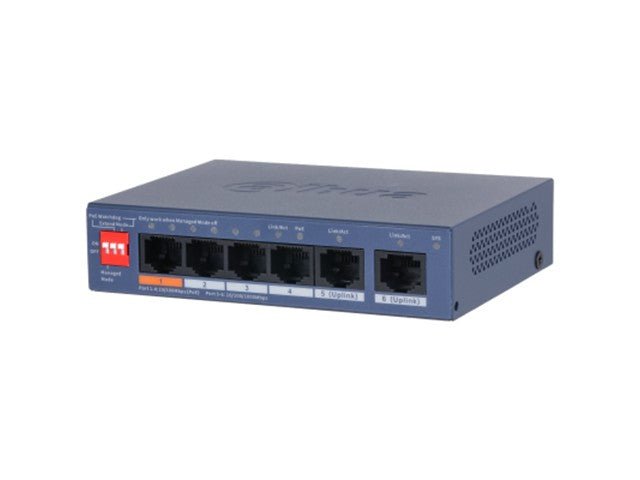

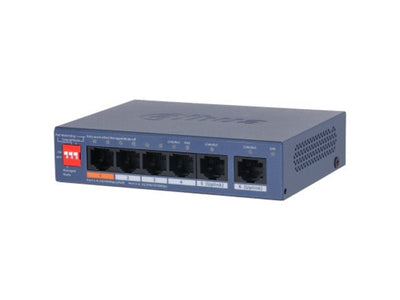

Description of Function Slots
|
Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
|
|
Operating Temperature
|
–10 °C to +55 °C (+14 °F to +131 °F)
|
|
Operating Humidity
|
10%–90% (RH), non-condensing
|
|
Storage Temperature
|
–40 °C to +70 °C (–40 °F to +158 °F)
|
|
Storage Humidity
|
5%–95% (RH), non-condensing
|
|
Power Supply
|
External power supply: 53 VDC, 1.22 A
|
|
Power Consumption
|
Idling: ≤3 W
Full load: 65 W
|
|
Statics Protection
|
Air discharge: 8 kV
Contact discharge: 6 kV
|
|
Lightning Protection
|
Common mode: 6 kV
|
|
Net Weight
|
0.2 kg (0.44 lb)
|
|
Gross Weight
|
0.76 kg (1.68 lb)
|
|
Product Dimensions
|
115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
|
|
Packaging Dimensions
|
195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)
|
|
Casing Material
|
Sheet metal
|
|
Installation
|
Desktop mount; wall mount
|
|
PoE
|
|
PoE
|
Yes
|
|
PoE Power
|
Port 2-4≤30 W, port 1≤60 W, total≤60 W
|
|
PoE Protocol
|
IEEE802.3af ; IEEE802.3at ; Hi-PoE
|
|
PoE Power Consumption Management
|
PoE power consumption management; PoE power on/off; turns off PoE if overload is detected
|
|
PoE Pin Assignment
|
1, 2, 4, 5（V+）, 3, 6, 7, 8（V-）
|
|
Long Distance PoE Transmission
|
Yes
|
|
Hardware
|
|
DIP Switch
|
Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-4 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
|
|

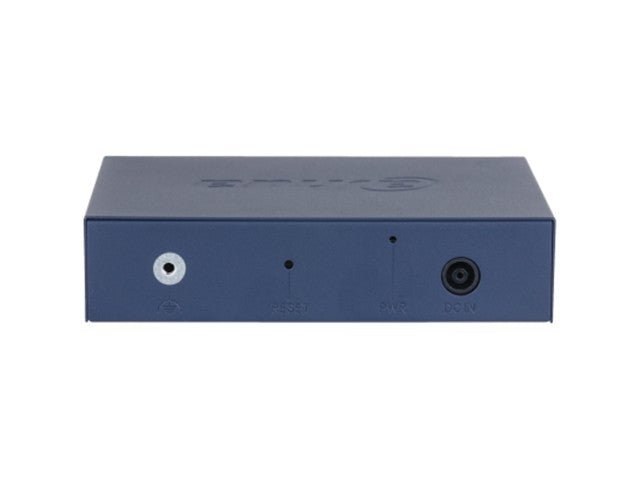

Reset Button
|
1
|
|
Performance
|
|
MTBF
|
232.62 years
|
|
Packet Buffer Size
|
4 Mbit
|
|
Jumbo Frame
|
9216 Byte
|
|
MAC Table Size
|
2K
|
|
Communication Standard
|
IEEE 802.3;
IEEE 802.3u;
IEEE 802.3x;
IEEE 802.3ab;
IEEE 802.3az
|
|
VLAN Number
|
32
|
|
Feature
|
|
VLAN Function
|
IEEE 802.1Q VLAN
|
|
Port Feature
|
IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
|
|
Mirror
|
N:1 Mirroring;
Local Port Mirroring
|
|
Reliability
|
LLDP
|
|
DHCP Function
|
DHCP Client
|
|
Security
|
Port Isolation
|
|
Equipment Management
|
Web Management
Cloud Management
Logs
Fault Alarm
|
|
General
|
|
Packing List
|
1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Adapter
1 × Power Cord
|
