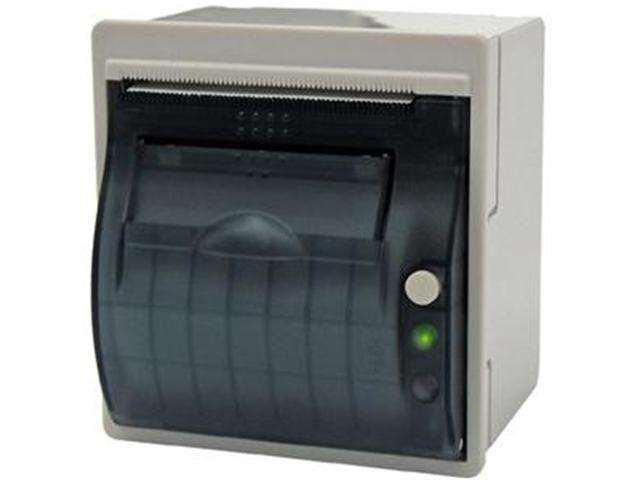

DPU-D2-00A-E

 Medical device manufacturers face numerous design challenges and compliance hurdles that can complicate and prolong product design cycles. New devices must be small and portable, easy to use, robust, extremely reliable, and cost-effective. DPU-D series low voltage direct thermal printers answer these challenges with proven, cost-effective, user friendly 2" and 3" panel mount designs. Built to fit into tight spaces, DPU-D thermal printers can help you sidestep integration headaches, accelerate time-to-market, and improve the user experience.

• Max printing speed: 100 mm/s
• Small and compact model
• Panel-mount type
• Easy paper operation

• Number of dots/line : 384
• Paper width (mm) : 58
• Printing width (mm) : 480
• Max. Speed (mm/sec) : 100(8.5V)
• Paper Path : Curved
• Character Matrix (HxW dots) : 24 x 24,24 x 12,16 x 16,16 x 8
• Character Size (HxW mm) : 3.0 x 3.0,3.0 x 1.5,2.0 x 2.0,2.0 x 1.0
• Number Columns : 16,32,24,48
• Operating Temperature (°C) : -10 to 50
• Operating Humidity (%RH) : 30 to 85 (Non condensation)
• Dimensions (WxDxH mm) : 80x55.3x85.5
• Mass (G) : Approx.180
