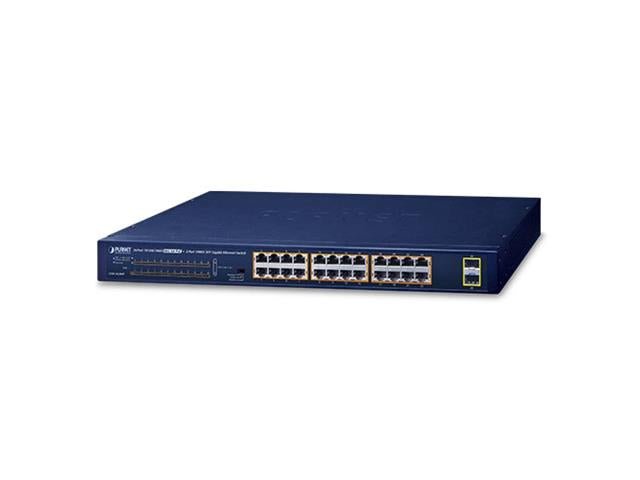

PLANET GSW-2620HP, an ideal Gigabit PoE Switch, provides a cost-effective advantage to local area networks of SMBs. Offering Layer 2 data packet switching and stable operation, this model also complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price. The GSW-2620HP is equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports and 2 1000BASE-X SFP interfaces with inner power system. Its 24 Gigabit Ethernet ports are integrated with an 802.3at PoE+ injector function. It offers a rack-mountable, safe and reliable power solution for SMBs deploying Power over Ethernet networks.
Features
Physical Port
24-port 10/100/1000BASE-T Gigabit RJ45 copper with 802.3at PoE+ injector function
2 1000BASE-X mini-GBIC/SFP slots
Power over Ethernet
Complies with IEEE 802.3af/at Power over Ethernet end- span PSE
Up to 24 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 30.8 watts for each PoE port
Each port supports 52V DC power to PoE powered device
240-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
Switching
Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 8K absolute MAC addresses
9K jumbo frame supports all speeds (10/100/1000Mbps)
IEEE 802.1Q VLAN transparency
Hardware DIP switch for Standard, VLAN and Extend mode selection;
VLAN mode: Ports 1 to 22 cannot communicate with each other, but can communicate with the uplink ports 23 to 24 and SFP ports 25 to 26
Extend mode: Ports1 to 8 have data rate of 10Mbps. The farthest transmission distance up to 250 meters and all ports can communicate with each other.
The DIP switch can isolate ports to prevent broadcast storm and defend DHCP spoofing
Automatic address learning and address aging
Supports Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
Upgrade your network with the GSW-2620HP 24-Port Gigabit Ethernet Switch, featuring Power over Ethernet (PoE+) for seamless connectivity. Perfect for SMBs, this unmanaged switch offers reliable performance with 240W PoE budget and auto-detection of powered devices. Enjoy easy installation, enhanced data transfer, and energy-efficient operation for a robust network solution.
