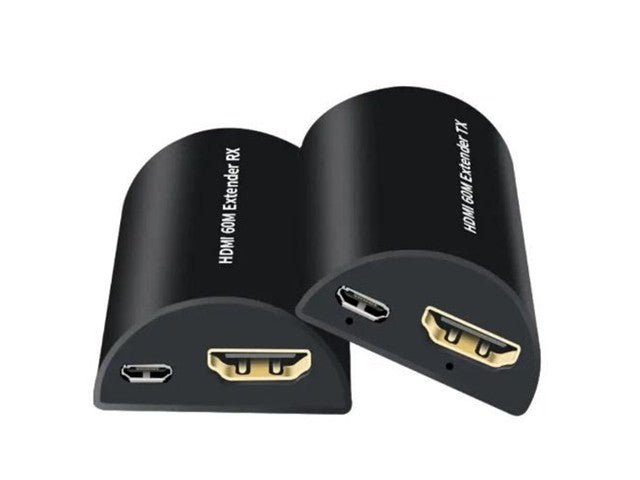

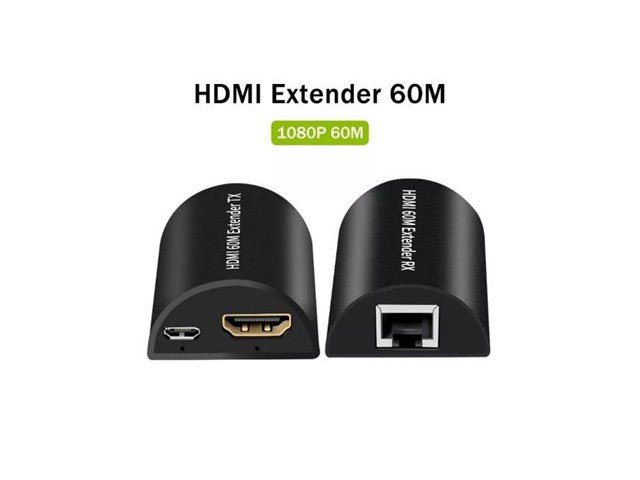

The Extender can transmit HDMI video to distances up to 60M over a single qualified Cat6 Ethernet cable instead of a costy long and active HDMI Cable.

Video transmission has very high requirements on network cable.Please use qualified Cat5/e/6 and above cables to pair the TX and RX only.

A qualified network cable is made of a pure conductor instead of  CCA (Copper Clad Aluminium) or CCS.(Copper Clad Steel)

Max. video transmission distance: 50m for Cat5e with 26 AWG copper conductor and 60m for Cat6 and above with 26 AWG copper conductor.

• Max (CAT5e / CAT6 cable) length between transmitter and receiver: 60m
• HDMI resolution: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
• Max. transmitter (TX) operating current: 300mA
• Max. receiver (RX) operating current: 300mA
• Max. bandwidth: 150MHz
• Max. baud rate: 4.5Gbps
• Power adapter format: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A
• Operating temperature: -15°C ~ +45°C
• Operating humidity: 5-90% RH
• Size: 52x38x17 mm
• Weight: TX 24.5g; RX 24.9g

• POWER - power input port
• INPUT - HDMI input port
• CAT5E/6 - CAT5e / CAT6 cable connection port

1. POWER - power input port
2. OUTPUT - HDMI output port
3. CAT5E/6 - CAT5e / CAT6 cable connection port

• Transmitter (TX) x1
• Receiver (RX) x1
• Power adapter and Micro USB cable x2
