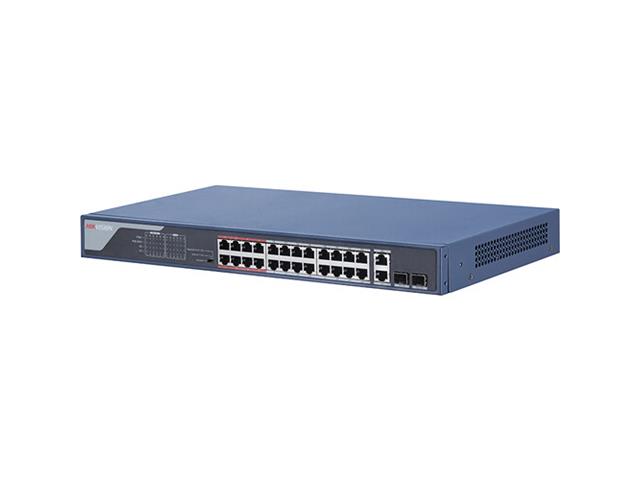

• 24 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.

General

• Shell : Metal material
• Net Weight : 2.83 kg (6.24 lb)
• Gross Weight : 3.800 kg (8.38 lb)
• Dimensions (W × H × D) : 440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
• Operating Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity : 5% to 95% (no condensation)
• Relative Humidity : 5% to 95% (no condensation)
• Power Supply100 : -240 VAC, 50/60 Hz, Max. 6.5 A
• Max. Power Consumption : 400 W

Network Parameters

• Port Type : RJ45 port,full duplex,MDIMDI-X adaptive
• Ports : 24 × 10/100 Mbps PoE port,2 × 1 Gigabit combo
• Standard : IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
• High Priority Ports : Ports 1 to 8
• Forwarding Mode : Store-and-forward switching
• Working Mode : Standard mode (default),Extend mode
• MAC Address Table : 16 K
• Switching Capacity : 8.8 Gbps
• Packet Forwarding Rate : 6.5472 Mpps
• Internal Cache : 4 Mbits

PoE Power Supply

• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin
  • End-span: 1/2(-), 3/6(+)
  • Mid-span: 4/5(+), 7/8(-)
  • 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port : PoE: Ports 1 to 24
• Max. Port Power : 30 W
• PoE Power Budget : 370 W

1. Datasheet - HKV DS-3E1326P-EI
