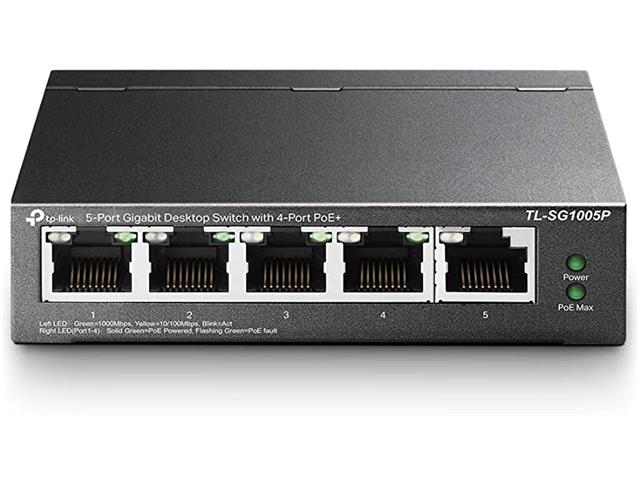

TP-LINK 5 Port 10/100/1000Mbps Desktop Switch with 4 Port PoE, Auto MDI/MDIX, (99.8x98x25mm), Unmanaged
5 Port Desktop Switch
Overview
TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Features
5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Power Consumption 4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected)
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Transmission Method : Store-And-Forward
Switching Capacity : 10Gbps
Mac Address Table : 2K
Fan Quantity : Fanless
External Power Supply : External Power Adapter(Output: 48VDC / 1.25A)
LED : Power, Link/Act, PoE Status, PoE Max
Dimensions ( W x D x H ) : 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Certification : FCC, CE, RoHS
Package Contents : TL-SG1005P, Power Adapter, User Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%RH, non-condensing
Storage Humidity: 5%~90%RH, non-condensing
Additional Information
Device
Switch
Type
5 Port | Desktop
Enhance your network with the TP-LINK SG1005P 5-Port Desktop Switch, featuring 4 Power over Ethernet (PoE) ports for seamless data and power transmission. Perfect for connecting IP cameras, phones, and access points, this unmanaged switch offers plug-and-play convenience and supports up to 56W total power. Expand your home or office network effortlessly and enjoy smooth, reliable connectivity.
