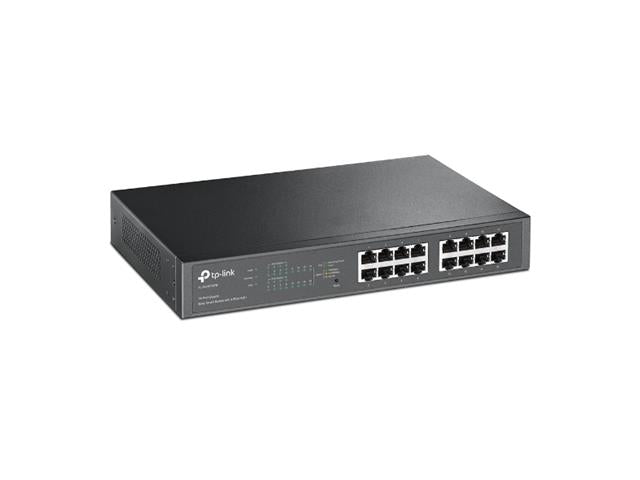

TP-LINK SG1016PE

Name: TP-LINK SG1016PE - Communica [Part No: TP-LINK SG1016PE]
Brand: TP-Link
SKU: TP-LINK SG1016PE
Price: 2450 ZAR
Availability: InStock

SKU: TP-LINK SG1016PE

BRAND: TP-Link

In Stock
R 2,817.50_{(inc VAT)}
R 2,450.00_{(ex VAT)}

Collections: Computing & Peripherals

Type: Power over Ethernet - PoE

Category: POE Switch

TP-LINK 16 Port Gigabit Easy Smart Switch with 8 Port PoE+ 10/100/1000Mbps, PoE Power Budget:150W, 32Gbps 8K, Forwading Rate:23.8 Mpps, 100-240VAC, 50/60Hz

16 Port Gigabit Easy Smart Switch

Overview

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.

8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Features

16× 10/100/1000Mbps RJ45 ports
Equipped with 8× PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 150 W,* up to 30 W per port
Works with IEEE 802.3af/at compliant devices
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

Specifications

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	1
Physical Security Lock	Yes
PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Port 1 to Port 8 PoE Power Budget: 150 W
Dimensions ( W x D x H )	11.6×7.1×1.7 in (294×180×44 mm)
Mounting	Rack Mountable/ Desktop
Max Power Consumption	8.8 W (220 V/50 Hz with no PD connected) 172.26 W (220 V/50 Hz with 150 W PD connected)
Max Heat Dissipation	30.01 BTU/h (220 V/50 Hz with no PD connected) 587.41 BTU/h (220 V/50 Hz with 150 W PD connected)

PERFORMANCE
Switching Capacity	32 Gbps
Packet Forwarding Rate	23.8 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	10 KB

SOFTWARE FEATURES
Quality of Service	Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
PoE	PoE Management Extend Mode PoE Auto Recovery
Management	Web-based GUI Easy Smart Configuration Utility
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft® Windows® for running Utility
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% non-condensing Storage Humidity: 5–90% non-condensing

Downloads

Datasheet - TP-LINK SG1016PE

Additional Information

Device	Switch
Type	16 Port \| Gigabit \| Easy Smart
