TP-LINK SG1210P

Name: TP-LINK SG1210P - Communica [Part No: TP-LINK SG1210P]
Brand: TP-Link
SKU: TP-LINK SG1210P
Price: 1200 ZAR
Availability: InStock

SKU: TP-LINK SG1210P

BRAND: TP-Link

R 1,380.00_{(inc VAT)}
R 1,200.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Computing & Peripherals

Type: Network Switches Racks & Accessories

Category: Prysinc, Switch Desktop 10 Port

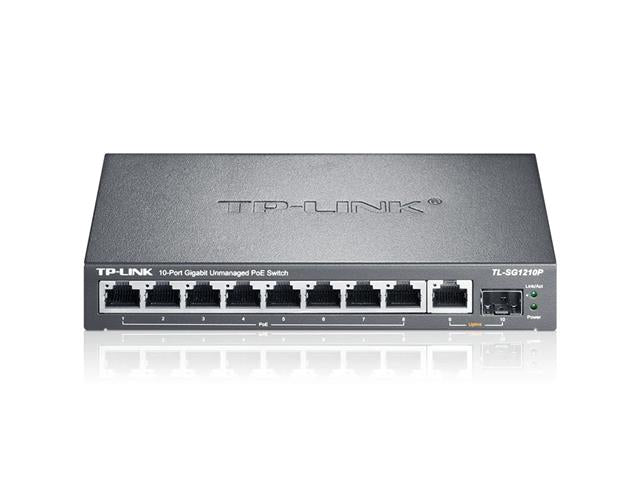

TP-LINK 10 Port 10/100/1000Mbs Desktop Switch with 8 Port PoE+, Auto MDI/MDIX, 4K, Auto-learning, (209×126×26mm), Unmanaged

10 Port 10/100/1000Mbs Desktop Switch

Overview

The TL-SG1210P provides 9 10/100/1000Mbps RJ45 ports and 1 Gigabit SFP port. Port 1 to port 8 of the switch support IEEE 802.3af/at compliant PDs with up tp 30 W for each PoE port and total PoE power budget of 63 W*. The TL-SG1210P is an unmanaged switch with desktop design, outstanding performance and quality, which is a great selection for expanding your network.

Features

Power over Ethernet

8 IEEE 802.3af/at compliant PoE+ ports, with a total PoE power budget of 63 W*
Flexible deployment for PoE suppoted devices such as wireless access points (APs), IP cameras and IP phones
Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs

Gigabit Expansion Solution

9 10/100/1000Mbps RJ45 ports and 1 Gigabit SFP port provide up to 20 Gbps Switching Capacity
IEEE 802.3x flow control provides reliable data transfer

Highlight Performance

802.1p and DSCP QoS ensures smooth traffic
IGMP Snooping optimizes multicast applications
Fanless design ensures quiet operation

Easy to Use

Just plug & play, no configuration required
Auto MDI/MDIX eliminates the need for crossover cables
Auto-negotiation intelligently adjusts for compatibility and optimal performance

Specifications

Standards : IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3z, 802.1p
Network Ports
- 8 PoE+ 10/100/1000 Mbps RJ45 Ports
- 1 10/100/1000 Mbps RJ45 Port
- 1 Gigabit SFP Slot

Network Media(Cable)
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m)
- EIA/TIA-568 100 Ω STP (maximum 100 m)
- 100Base-TX: UTP category 5, 5e or above cable (maximum 100 m)
- EIA/TIA-568 100 Ω STP (maximum 100 m)
- 1000Base-T: UTP category 5, 5e, 6 or above cable(maximum 100 m)
- EIA/TIA-568 100 Ω STP (maximum 100 m)
- 1000BASE-X MMF, SMF

PoE
- PoE Standard: 802.3af/at
- PoE Ports 1-8, up to 30 W per port
- PoE Power Budget 63 W*

Auto Negotiation : YES
Auto MDI/MDIX : YES
Max Power Consumption
- 7.11 W (220/50 Hz. no PD connected)
- 78.13 W (220/50 Hz. with 63 W PD connected)

Max Heat Dissipation
- 24.25 BTU/h (no PD connected)
- 266.42 BTU/h (with 63 W PD connected)

Forwarding Mode : Store and Forward
Switch Capacity : 20 Gbps
MAC Address Table : 4K, Auto-learning, Auto-aging
Flow Control : YES
Fanless : YES
LED : Power, Link/Act, PoE Status, PoE MAX
Dimensions : 8.2 x 5.0 x 1.0 in. (209 × 126 × 26 mm)
Certifecation : CE, FCC
Operating Temperature : 0°C to 40 °C (32 °F to 104°F )
Storage Temperature : -40 °C to 70 °C (-40 °F to 158°F )
Operating Humidity 1: 0% to 90% non-condensing
Storage Humidity : 5% to 90% non-condensing

Downloads

Datasheet - TP-LINK SG1210P

Additional Information

Device	Switch
Type	10 Port \| 10/100/1000Mbs \| Desktop

Upgrade your network with the TP-LINK SG1210P, a powerful 10-port desktop switch featuring 8 PoE+ ports for seamless power and data transmission. With a total PoE budget of 63W, it effortlessly supports devices like IP cameras and access points, making installation easy and cost-effective. Enjoy gigabit speeds, reliable performance, and a fanless design for quiet operation, perfect for any home or office setup.
