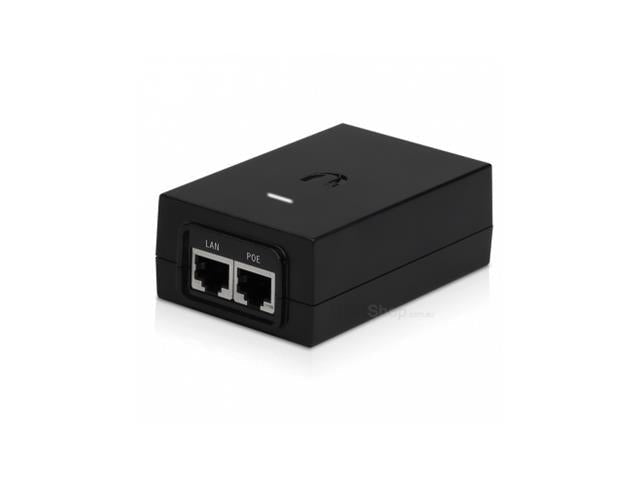

Ubiquiti PoE Injector 24V, Support Passive PoE, Output Voltage 24VDC @ 0.5A
PoE Injector 24V
Specifications
- Dimensions : 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
- Weight : 92 g (3.25 g)
- Output Voltage : 24VDC @ 0.5A
- LAN Activity Indicator : No
- Gigabit LAN Port : No
- Remote Reset Capability : Yes
- Reset Button : Yes
- Rated Voltage : 100-240VAC @ 50/60Hz
- Input Current 0.3A @ 120VAC, 0.2A @ 240VAC
- Inrush Current <30A Peak @ 120VAC, <60A Peak @ 230VAC
- Efficiency : 75+%
- Output Ripple : 1% Max.
- Switching Frequency : 50 kHz
- Line Regulation : ≤ 3%
- Load Regulation : ≤ 5%
- 2-Pair Powering : Pins 4, 5 (+) and Pins 7, 8 (-)
- Operating Temperature : 0 to 40° C (32 to 104° F)
- Storage Temperature : -30 to 70°C (-22 to 158° F)
- Operating Humidity : 35 to 95% Noncondensing
- AC Connector : IEC-320 C6
- Data IN / POE : RJ45 Shielded Socket
- Surge Protection : Difference and Common Mode
- Clamping Protection : 11V Data, 60V Power
- Max. Surge Discharge : 1500A (8/20 μs) Power
- Peak Pulse Current : 36A (10/1000 μs) Data
- Shunt Capacitance : <5 pF data
- Response Time : <1 ns
Downloads
Additional Information
Device |
Injector |
Type |
PoE | 24V |
