USR N510 - H7 1 - PORT RS485 - ETHERNT - INDUSTRIAL IoT Wi - fi SOLUTIONS -

USR N510-H7 1-PORT RS485-ETHERNT

Name: USR N510-H7 1-PORT RS485-ETHERNT - Communica [Part No: USR N510-H7 1-PORT RS485-ETHERNT]
Brand: UsrIoT
SKU: USR N510-H7 1-PORT RS485-ETHERNT
Price: 1220 ZAR
Availability: InStock

SKU: USR N510-H7 1-PORT RS485-ETHERNT

BRAND: UsrIoT

R 1,403.00_{(inc VAT)}
R 1,220.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Computing & Peripherals

Type: Industrial IoT Wi-fi Solutions

Category: 1 Port Ethernet Device Server

An Industrial 1 Port Ethernet Device Server with Bi-Directional Transparent Transmission Between RS232/RS485/RS422 and Network. Supports MQTT

1 Port Ethernet Device Server

Specifications

System Information
Processor	ST Cortex-M7
Basic Frequency	400MHz
Flash	128K+4M byte
Ethernet
Port Number	1
Interface Standard	8 pin RJ45
Rate	10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection	2KV electromagnetism isolation, shell insulation blocking
Network Protocol	IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client
Receive Buffer	Max 16k bytes buffer
Serial
Port Number	1
Interface Standard	RS232/RS485/RS422
Data Bits	7,8
Stop Bit	1,2
Check Bit	Even,Odd
Baud Rate	600bps ~ 921600Mbps
Flow Control	XON/XOFF
Buffer	Send and receive 4k bytes respectively
Protection	RS-485: anti-static 2KV,lightning protection
RS-485 Pull-up and Pull-Down Resistor	2.2 KΩ
Software
Virtual Serial（USR-VCOM）	Windows 2000 or higher(32 bit/64 bit)
Configuration	Built-in webpage, computer set-up software, serial command
Basic Parameter

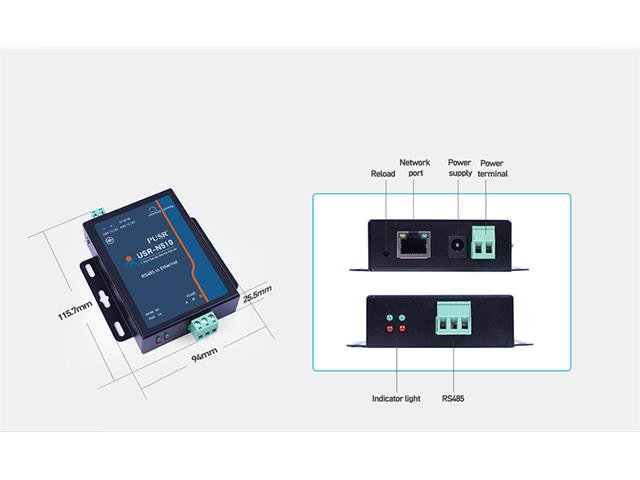

Size	88 x 81 x 24 mm
Operating Temp.	-40 ~ 85°C (industry)
Storage Temp.	-40 ~ 85°C, 5 ~ 95% RH (no condensation)
Input Voltage	DC 5 ~ 36V
Working Current	53mA @ 12V
Power	<1W

Downloads

Additional Information

Device	Device Server
Type	1 Port \| Ethernet

Unlock seamless connectivity with the USR N510-H7 1-Port RS485-Ethernet Device Server. Designed for bi-directional data transmission, it effortlessly bridges RS232/RS485/RS422 with your network, ensuring reliable communication in industrial settings. With robust protection and easy setup, this device enhances your automation projects while providing exceptional value and performance.
