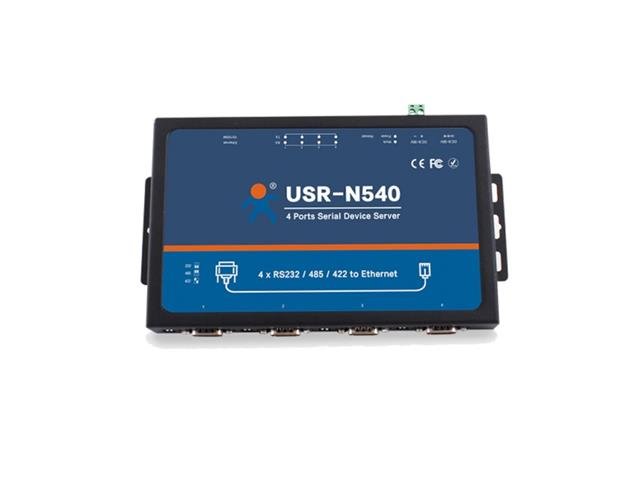

USR N540 4-PORT SERIAL-ETHERNET
SKU: USR N540 4-PORT SERIAL-ETHERNET
BRAND: UsrIoT
R 2,760.00 (inc VAT) R 2,400.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00
An Industrial 4 Port Ethernet Device Server with BI-Directional Transparent Transmission Between RS232/RS485/RS422 and Network.
4 Port Ethernet Device Server
Features
USR IOT's serial to IP Converters USR-N540 can realize bi-directional transparent transmission between RS232/RS485/RS422 and network
4-port RS-232/422/485 Serial to IP Converter
Power supply accepts wide voltage input range DC 9-36 Vdc
Support TCP server/client, UDP server/client,https client, Virtual COM
Support Modbus RTU to Modbus TCP
Support flow control CTS/RTS, XON/XOFF
Support 4 RS-232, RS-485/422 3IN1 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
Configuration via Web Server page, AT commands, and Windows Utility
Specifications
Categories
Cellular & Network Communication
Manufacturer/Brand
USR IOT
Ethernet ports
LAN, WAN
Ethernet Protocols
10/100 Mbps
Serial Standard
RS232, RS422, RS485
Comm. Method
Serial
Comm. Protocol
ARP, DHCP, DNS, Ethernet, HTTP, HTTPD Client, ICMP, IP, TCP, UDP, Web socket
Supply Voltage
9~24 Vdc
Operating Temperature
-40° to 185°F, -40° to 85°C
Width (in)
8.74
Depth (in)
4.80
Height (in)
1.14
Width (mm)
222.00
Depth (mm)
122.00
Height (mm)
29.00
Weight (kg)
1.360
Weight (lbs)
3.00
Safety
CE, FCC, RoHS
Downloads
Additional Information
Device
Device Server
Type
4 Port | Ethernet
Enhance your industrial communication with the USR N540 4-Port Serial-Ethernet Device Server. This reliable device offers bi-directional transmission between RS232/RS485/RS422 and your network, supporting multiple protocols for seamless integration. With a wide voltage input and easy web-based configuration, it’s perfect for efficient, high-performance networking. Upgrade your connectivity today!
