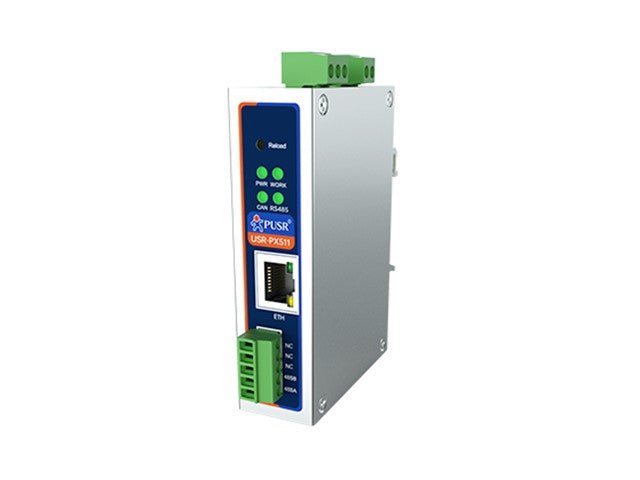

USR PX511 CANOPEN TO MODBUS CON

Name: USR PX511 CANOPEN TO MODBUS CON - Communica [Part No: USR PX511 CANOPEN TO MODBUS CON]
Brand: UsrIoT
SKU: USR PX511 CANOPEN TO MODBUS CON
Price: 1440 ZAR
Availability: InStock

SKU: USR PX511 CANOPEN TO MODBUS CON

BRAND: UsrIoT

R 1,656.00_{(inc VAT)}
R 1,440.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Computing & Peripherals

Type: Industrial IoT Wi-fi Solutions

Category: Industrial Canopen To Modbus Protocol Converter

An Industrial Canopen To Modbus Protocol Converter. It Operates As A Canopen Slave With Can, Rs485, And 10/100m Ethernet Interfaces, Enabling Integration Of Modbus Devices Into Canopen Systems

Modbus Protocol Converter

Overview

Industrial Protocol Gateway

The USR-PX511 is an advanced protocol converter from the USR-PX series, specializing in converting CANopen Master protocols to Modbus TCP Master/Slave or Modbus RTU Master/Slave protocols . The device acts as a Host (Master) in a CANopen network, allowing it to collect and exchange data with CANopen Slave devices (servo drives, sensors, I/O systems) and share this data with Modbus-enabled PLC or SCADA systems. It provides high-performance, closed-loop communication.

Multifunctional interface and industrial durability

The USR-PX511 converter features a CAN port (screw-type connector), one standard RJ4 Ethernet port (10/100 Mbps), and an RS485 serial interface (terminal block). Like other models in the series, it features enhanced industrial durability with EMC Level 3 protection (ESD, Surge, EFT) and galvanic isolation for all interfaces and power supply. Its aluminum housing and wide operating temperature range of -40°C to +85°C ensure reliability in the harshest operating environments.

Easy setup and power supply

The CANopen device (object dictionary) is configured and managed using dedicated PC software and an EDS file. The device is powered by a wide voltage range of 9-36V DC via a safe, pluggable screw connector (terminal block) with reverse polarity protection. DIN rail mounting and compact dimensions (same as the PX520/PX530) facilitate quick integration into control cabinets.

Feature(s)

protocol conversion: CANopen Master to Modbus TCP Master/Slave and Modbus RTU Master/Slave
communication interfaces: 1x CAN Port (Master), 1x Ethernet RJ45 (10/100 Mbps), 1x RS485
Power supply and housing: wide range DC 9-36V . Aluminum housing, DIN rail mounting
Industrial resistance: operating temperature -40°C ~ +85°C . EMC Level 3 protection and galvanic isolation for all ports
diagnostics: status LEDs ( PWR , WORK , 485 , CAN ), Reload button , Type-C interface for debugging

Specifications

Communication Interfaces
CAN	1 × CAN Port (Master), Terminal Block
Ethernet	1 × RJ45 port, 10/100 Mbps (Auto MDI/MDIX)
Serial Interface	1 × RS485 (Terminal Block 3.81 × 3P), 600~230.4K bps
Protocols	CANopen Master to Modbus TCP/RTU Master/Slave
Power Supply and Physical Parameters
Input Power	DC 9-36V (Terminal Block 5.08 × 2P)
Power consumption	Datasheet required for exact values
Dimensions (with DIN mounting)	137.3 × 30 × 109.3 mm
Installation	DIN rail mounting, aluminum housing
Operating/Storage Temperature	-40°C ~ +85°C / -40°C ~ +105°C
Humidity	5% ~ 95% (non-condensing)
Protection and Diagnostics
EMC protection (ESD, Surge, EFT)	IEC 61000-4-2/4/5 Level 3 (Galvanic isolation)
CAN terminating resistor	Datasheet required for details
Status LEDs	PWR, WORK, 485, CAN
Reload/Debug button	Factory Reset (3-15s) / Type-C Debug Port

The set includes:

1 x USR-PX511 Protocol Converter
1 x Terminal Block (for power supply, RS485 and CAN)
1 x original packaging

Downloads

Datasheet - USR PX511 CANOPEN TO MODBUS CON

Additional Information

Device	Protocol Converter
Type	Modbus \| Protocol \| Converter

Transform your industrial communication with the USR PX511 CANopen to Modbus Converter. This robust device seamlessly integrates CANopen systems with Modbus TCP/RTU protocols, ensuring reliable data exchange between devices. Built for durability, it operates in extreme conditions and features easy setup for hassle-free installation. Enhance your automation efficiency today!
