09-0423-00-07

SKU: 09-0423-00-07

BRAND: Binder

In Stock
R 340.63_{(inc VAT)}
R 296.20_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M9 Connectors IP67

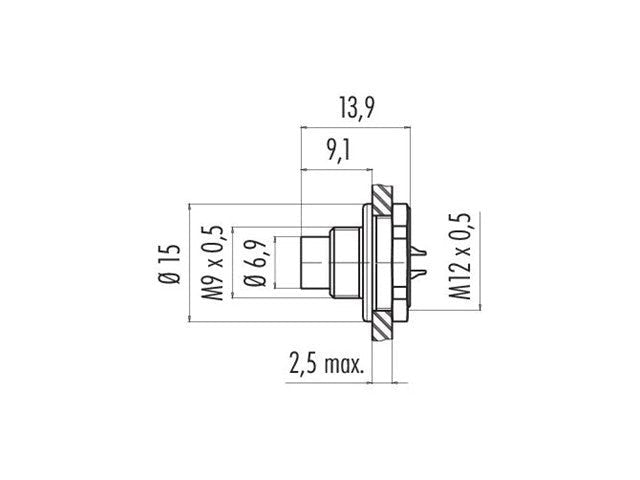

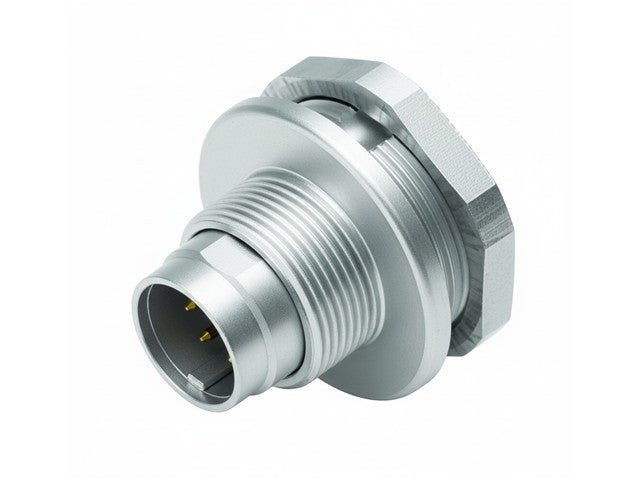

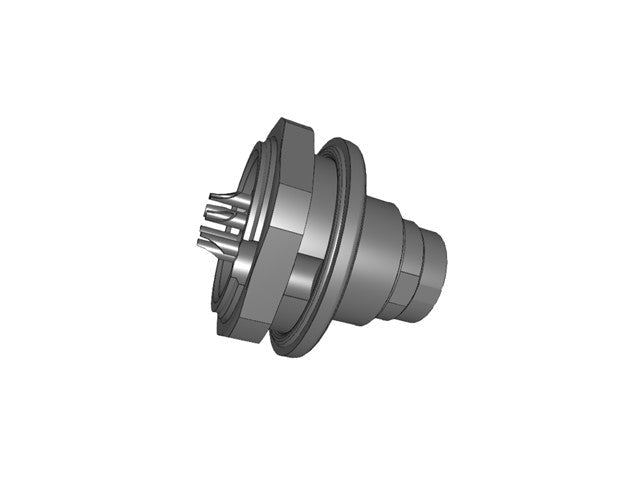

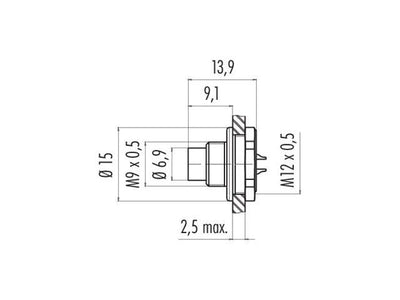

Circular Connector M9 Panel Flange Male 7 Pole Rear Mount Solder Terminal IP67

M9 Panel Flange Circular Connector

Specifications

General characteristics

item number	09 0423 00 07
Connector design	Flange connector
execution	Connector pin straight
Connector locking	screw
Connection type	soldering
Protection class	IP67
Connection cross-section	0.14 mm² / AWG 26
Limit temperature from / to	-40°C / 85°C
Mechanical life	> 500 mating cycles
Weight (g)	5.50

Country of origin	EN

Electrical characteristics

Rated voltage	125V
Rated impulse voltage	1500V
Rated current	1.0A
Insulation resistance	≥ 10 ¹⁰ Ω
Degree of contamination	1
Overvoltage category	II
Insulating material group	III
EMC compatibility	unshielded

Materials

Housing material	CuZn (nickel-plated brass)
Material contact body	UL94 V-0
Material Contact	CuZn (brass)
Contact surface	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	8f3c6167-bcc2-42ff-ae1d-682ef8a5db55

Classifications

eCl@ss 11.1	27-44-01-09
ETIM9.0	EC003569

Downloads

Datasheet - 09_0423_00_07

Additional Information

Device	Connector
Type	M9 \| Panel Flange \| Circular
