09 - 0423 - 90 - 07 - Circular Connectors - 2050010633352

09-0423-90-07

Name: 09-0423-90-07 - Communica [Part No: 09-0423-90-07]
Brand: Binder
SKU: 09-0423-90-07
Price: 422 ZAR
Availability: InStock

SKU: 09-0423-90-07

BRAND: Binder

R 485.30_{(inc VAT)}
R 422.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M9 Connectors IP67

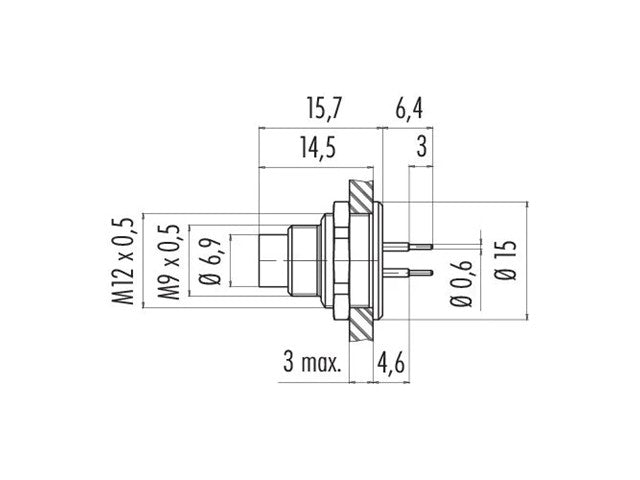

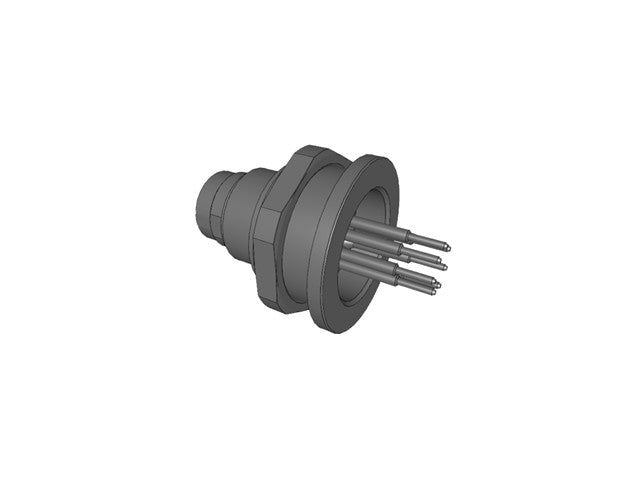

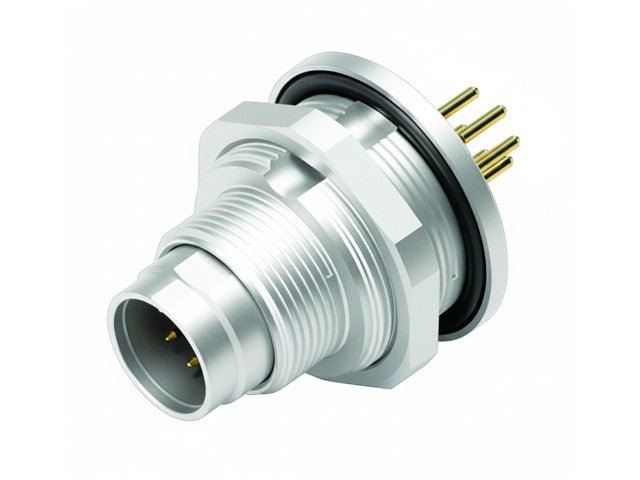

Circular Connector M9 Panel Flange Male 7 Pole Front Mount PCB Contacts IP67

7 Pole Male Circular Connector

Specifications

Connector design : male panel mount connector
Version : connector male straight
Connector locking system : screw
Termination : dip-solder
Degree of protection : IP67
Temperature range from/to : -40 °C / 100 °C
Mechanical operation : > 500 Mating cycles
Weight (g) : 6.00

Electrical parameters

Rated voltage : 125 V
Rated impulse voltage : 1500 V
Rated current (40 °C) : 1 A
Insulation resistance : ≥ 10¹⁰ Ω
Pollution degree : 1
Overvoltage category : II
Insulating material group : III
EMC compliance : unshielded

Downloads

Datasheet - 09-0423-90-07

Additional Information

Device	Connector
Type	7 Pole \| Male \| Circular

Discover the rugged reliability of the 09-0423-90-07 Circular Connector. With its IP67 rating and robust male panel mount design, this 7 pole connector withstands extreme temperatures and harsh environments, ensuring secure connections for your PCB applications. Experience unmatched durability with over 500 mating cycles and a dependable locking system, perfect for enhancing your electronic projects.
