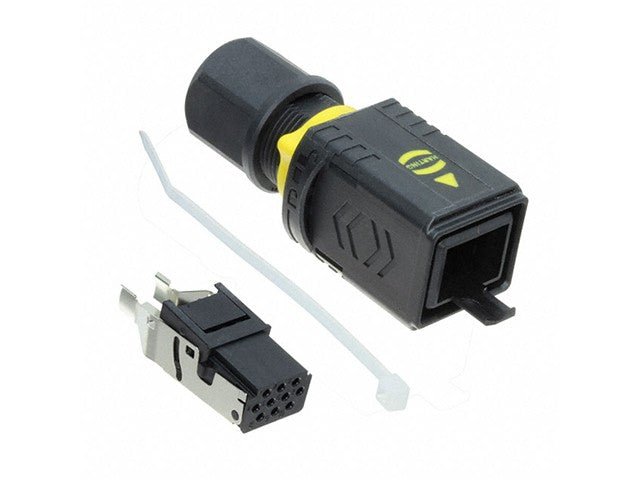

Harting PushPull V4 Plug, Signal, 10-Pole, Female Crimp Termination
PushPull V4 Plug
Specifications
| Conductor cross-section |
0.13 ... 0.82 mm² |
| Conductor cross-section [AWG] |
AWG 26 ... AWG 18 |
| Wire outer diameter |
≤ 2.1 mm |
| Contact spacing (termination side) |
2.4 mm |
| 3 mm |
| Contact spacing (mating side) |
2.4 mm |
| 3 mm |
| Rated current |
5 A |
| Rated voltage |
50 V |
| Rated impulse voltage |
1.5 kV |
| Pollution degree |
3 |
| Transmission characteristics |
Cat. 5 Class D up to 100 MHz |
| Data rate |
10 Mbit/s |
| 100 Mbit/s |
| Clearance distance |
≥ 1.1 mm |
| Creepage distance |
≥ 1.1 mm |
| Insulation resistance |
>109 Ω |
| Contact resistance |
≤ 10 mΩ |
| Tightening torque |
1.3 ... 1.5 Nm |
| Limiting temperature |
-40 ... +85 °C |
| Storage temperature |
+5 ... +50 °C |
| Insertion force |
50 N |
| Withdrawal force |
50 N |
| Mating cycles |
≥ 500 |
| Degree of protection acc. to IEC 60529 |
IP65 |
| IP67 |
| Cable diameter |
4.5 ... 10 mm |
| Test voltage Ur.m.s. |
1.5 kV (contact-contact) |
| 1.5 kV (contact-ground) |
| Isolation group |
I (600 ≤ CTI) |
| Vibration resistance |
10-500 Hz, 5 g, 0.35 mm, 2h/axis |
| 5.72 m/s² acc. to IEC 61373 Category 1 Class B |
| Shock resistance |
25 g / 11 ms, 3 shocks / axis and direction |
| 5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B |
| Material (contacts) |
Copper alloy |
| Material (hood/housing) |
Polyamide (PA) |
| Colour (hood/housing) |
Black |
| Material flammability class acc. to UL 94 |
V-0 |
| RoHS |
compliant |
| ELV status |
compliant |
| China RoHS |
e |
| REACH Annex XVII substances |
Not contained |
| REACH ANNEX XIV substances |
Not contained |
| REACH SVHC substances |
Not contained |
| California Proposition 65 substances |
Yes |
| California Proposition 65 substances |
Nickel |
| Naphthalene |
| Fire protection on railway vehicles |
EN 45545-2 (2020-08) + A1 (2023-10) |
| Requirement set with Hazard Levels |
R26 |
Downloads
Additional Information
| Device |
Plug |
| Type |
PushPull | V4 |
Discover the Harting PushPull V4 Plug, a reliable 10-pole female connector designed for optimal signal transmission. With IP65/IP67 protection, it withstands harsh environments, ensuring durability and peak performance. Ideal for industrial applications, this plug supports data rates up to 100 Mbit/s and operates across a wide temperature range, delivering exceptional value and reliability.
