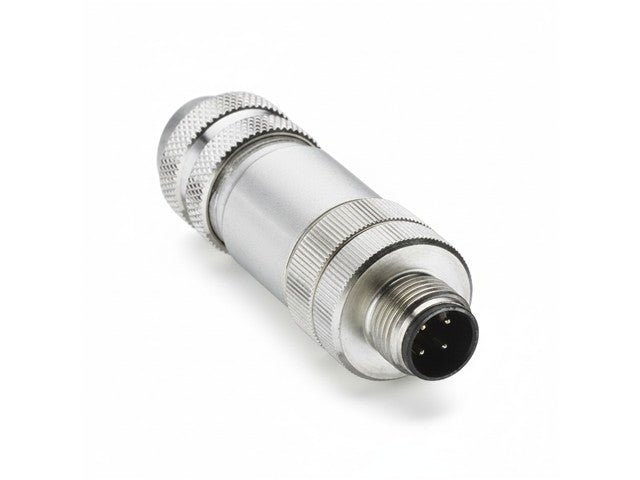

Circular Connector M12 D COD Cable Male Straight. 4 Pole Spring Term. 4mm- 9mm Cable Entry
Circular Connector M12 D COD Cable Male
Feature(s)
- Note : The application of these products in harsh environments should always be checked before use.
- Color of Housing : Silver
- Number of Contacts : 4
- Product Characteristics : EMC Resistance, Oil Resistance

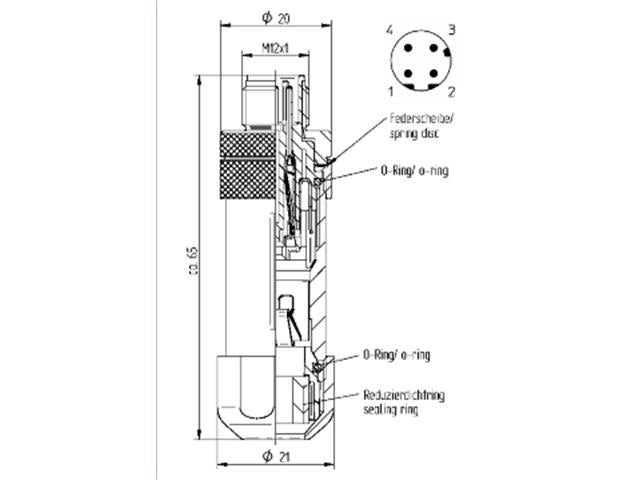

Mechanical data
- Type of Plug-in Contact : Male Connector
- Design of housing : straight
- Thread : M12
- Design of Electrical Connection : Spring Type Terminal Connection
- Coding of the M12 Round Plug Connector : D
- Connectable Conductor Cross-section Multiple Wire (without sleeve) : 0.14 - 0.50 mm
- Connectable Conductor Cross-section Multiple Wire (with sleeve) : 0.14 mm
- Screw Joint for Cable For External Cable Diameter : 4 mm ... 9 mm
Environmental conditions
Environmental Temperature : -25 ºC ... 90 ºC Degree of Protection (IP), Mounted : IP67 Pollution Degree : 3
Materials
- Housing Material / Molded Body : GD-ZnAl, Pre-coppered and Nickel-plated
- Contact Bearer Material : PBT
- Contact Material : Stainless Steel
- Contact Material - Surface Refinement : silver-plated and gold-plated
- Knurled Screw / Nut Material : CuZn, Nickel-plated
- Sealing Material : FKM
Approvals
- RoHS 2002/95/EG Compliant : yes
Electrical Data
- Contact Resistance : ≤ 5 mΩ
- Rated Current In : 4 A at 40°C
- Nominal Voltage : 120 V
- Rated Voltage : 125 V
Downloads
Additional Information
| Device |
Connector |
| Type |
Circular | M12 | D COD Cable | Male |
Discover the 0986 EMC 102 Circular Connector, designed for reliability in harsh environments. With a robust M12 male connection and IP67 protection, it ensures secure performance against oil and extreme temperatures. Perfect for diverse applications, this connector combines durability with easy installation, making it an essential choice for your projects. Upgrade your connectivity today!
