223-99-624

SKU: 223-99-624

BRAND: Precidip

R 4.59_{(inc VAT)}
R 3.99_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: PCB Connectors

Category: IC Sockets

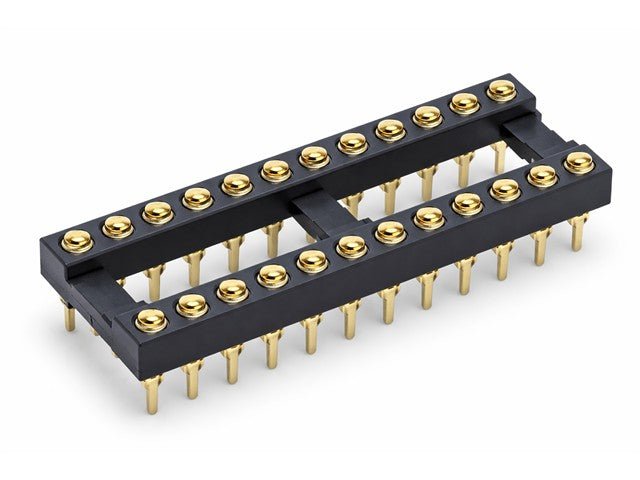

IC Socket PRECIDIP

IC Socket PRECIDIP

Specifications

Product Type: IC Socket (DIP / DIL)
Manufacturer: PRECIDIP
Part Number: 223-99-624
Number of Pins: 24
Pin Pitch: 2.54 mm (0.1")
Row Spacing: 15.24 mm (0.6")
Mounting Type: Through-hole
Contact Type: Turned pin (precision / machined)
Contact Plating: Gold over nickel
Contact Material: Copper alloy
Housing Material: High-temperature thermoplastic
Frame Type: Open frame
Termination Type: Solder tail
Current Rating: ~1 A
Voltage Rating: ~100 VAC / 150 VDC
Contact Resistance: Low (typ. < 10 mΩ)
Insulation Resistance: ≥ 10⁹ Ω
Operating Temperature: −55°C to +125°C
Insertion Life: High (multiple insertion cycles)
Compliance: RoHS compliant (typical)

Additional Information

Device	Socket
Type	IC \| Socket \| PRECIDIP
