77-3430-0000-50004-0200

Name: 77-3430-0000-50004-0200 - Communica [Part No: 77-3430-0000-50004-0200]
Brand: Binder
SKU: 77-3430-0000-50004-0200
Price: 226 ZAR
Availability: InStock

SKU: 77-3430-0000-50004-0200

BRAND: Binder

R 259.90_{(inc VAT)}
R 226.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

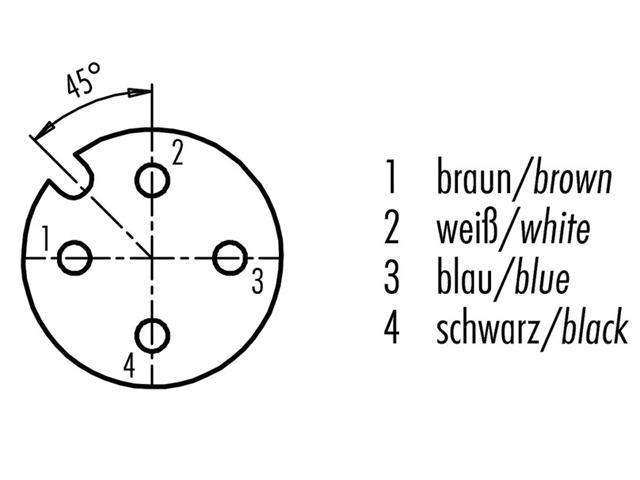

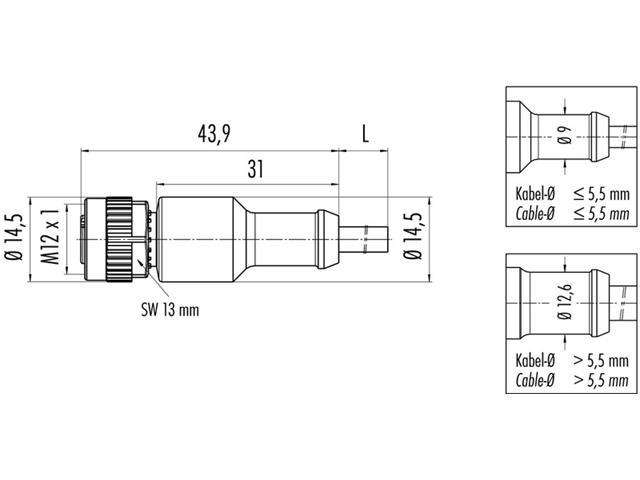

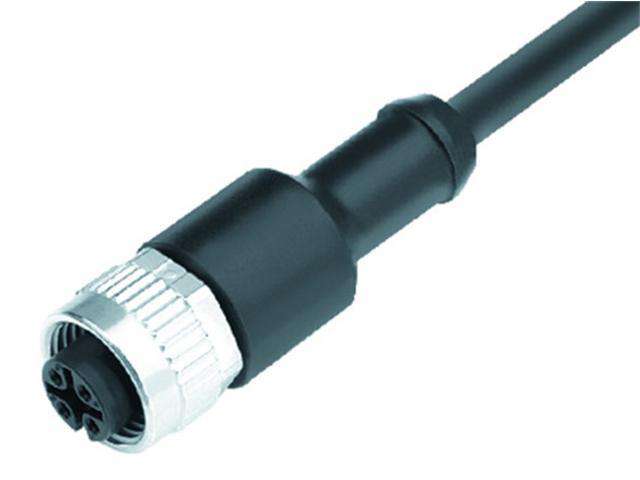

4 way Female Cable Connector Moulded with 2m Cable length

Overview

Features

Special Cable with the + model is UL approved employs higher quality PUR cable suitable for drag chain applications and resistance to oil and chemicals

Specification

Connector locking system	Screw
Termination	crimp, overmoulded on cable
Wire gauge (mm)	0,34 mm²
Wire gauge (AWG)	22
Cable length	2 m
Degree of protection	IP 68
Mechanical operation	100 mating cycles
Upper temperature	+85 °C
Lower temperature	-25 °C
Rated voltage	250 V
Rated impulse voltage	2500 V
Pollution degree	3
Overvoltage category	II
Material group	II
Rated current (40°C)	4 A
Volume resistivity	3 mO
Material of contact	CuSn (bronce)
Contact plating	Au (gold)
Material of contact body	PUR
Material of housing	PUR
Cable Data :
Material housing	PUR
Insulation single lead	PVC
Single lead structure	42 x 0,1
Cable sheath Ø	5
Conductor resistance	55O/Km
Temperature range cable movable c from	-5
Temperature range cable movable c to	70
Temperature range cable fixed c from	-25
Temperature range cable fixed c to	70
Bending radius cable fixed	25 mm
Bending radius cable movable	50 mm

Downloads

Datasheet Download

Discover the 4-way Female Cable Connector with a durable 2m PUR cable, perfect for drag chain applications. UL approved and resistant to oil and chemicals, this connector ensures reliable performance in tough environments. With an IP68 rating and a temperature range of -25°C to +85°C, it guarantees longevity and safety for your electrical connections. Upgrade your setup with this high-quality, versatile connector today!
