99-0210-15-04

Name: 99-0210-15-04 - Communica [Part No: 99-0210-15-04]
Brand: Binder
SKU: 99-0210-15-04
Price: 256.12 ZAR
Availability: OutOfStock

SKU: 99-0210-15-04

BRAND: Binder

Sold Out
R 294.54_{(inc VAT)}
R 256.12_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular RD24 Connectors IP67

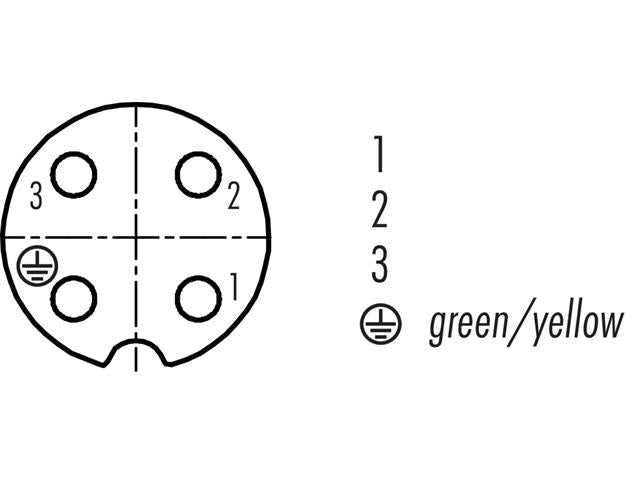

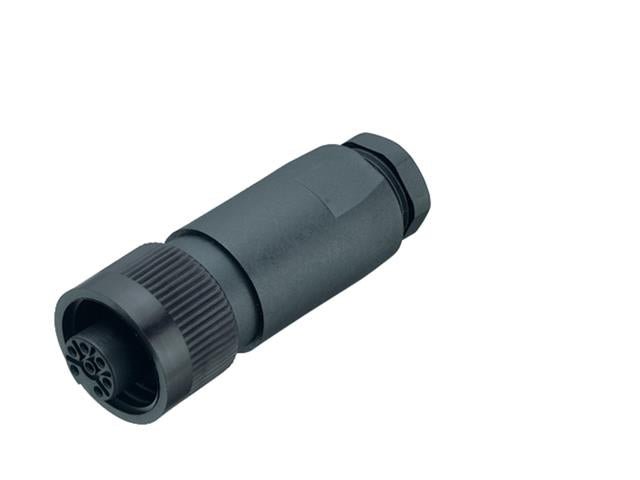

Circular Connector - RD24 style Binder 4 Pole (3P+Earth) Cable End Female Long Strain Relief Screw Term. 16A/400VAC. Cable OD 10-12mm. IP67

4 Pole RD24 Style Circular Connector

Specifications

Connector design : female cable connector
Version : connector female straight
Connector locking system : screw
Termination : screw clamp
Degree of protection : IP67
Cross-sectional area : max. 2.50 mm² / max. AWG 14
Cable outlet : 10.0 - 12.0 mm
Temperature range from/to : -40 °C / 100 °C
Mechanical operation : > 500 Mating cycles
Weight (g) : 45.55
Customs tariff number : 85369010

Electrical parameters

Rated voltage : 400 V
Rated impulse voltage : 6000 V
Rated current (40 °C) : 16 A
Insulation resistance : ≥ 10¹⁰ Ω
Pollution degree : 3
Overvoltage category : III
Insulating material group : III
EMC compliance : unshielded

Material

Contact body material : PBT (UL94 V-0)
Contact material : CuZn (brass)
Contact plating : Ag (silver)
REACH SVHC : CAS 7439-92-1 (Lead)
SCIP number : SCIP-number not available

Downloads

Datasheet - 99-0210-15-04

Additional Information

Device	Connector
Type	4 Pole \| RD24 Style \| Circular

Discover the reliable 99-0210-15-04 Circular Connector, designed for optimal performance with its IP67 protection and robust 4-pole configuration. Perfect for demanding environments, this female cable connector ensures secure connections with screw termination and long strain relief, supporting up to 16A at 400VAC. Upgrade your connectivity with this durable, high-quality solution that withstands extreme temperatures and ensures over 500 mating cycles.
