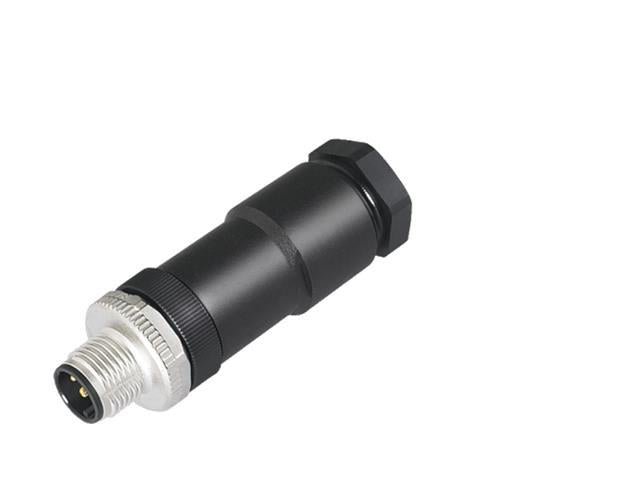

• Execution : Connector pin straight
• Connector Locking : Screws
• Connection type : screw clamp
• Protection : IP67
• Connection cross-section : max. 1.50 mm2 / max. AWG 16
• Cable passage : 8.0 - 10.0 mm
• Limit temperature from / to : -40 °C / 85 °C
• Mechanical lifespan : > 100 plug-in cycles
• Weight (gr) : 23

Electrical Characteristics

• Rated voltage : 250 V
• Rated shock voltage : 2500 V
• Rated current (40°C) : 8 A
• Insulation resistance : > 10⁸
• Degree : 3
• Surge category : Ⅱ
• Insulating material group : Iii

Material

• Material Housing : Pa
• Material contact body : Pa
• Material Contact : CuZn (brass)
• Contact surface : Au (Gold)
• EACH SVHC : CAS 7439-92-1 (Lead)

1. Datasheet - 99-0429-19-04
