99-0429-57-04

Name: 99-0429-57-04 - Communica [Part No: 99-0429-57-04]
Brand: Binder
SKU: 99-0429-57-04
Price: 202.50 ZAR
Availability: OutOfStock

SKU: 99-0429-57-04

BRAND: Binder

Sold Out
R 232.88_{(inc VAT)}
R 202.50_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

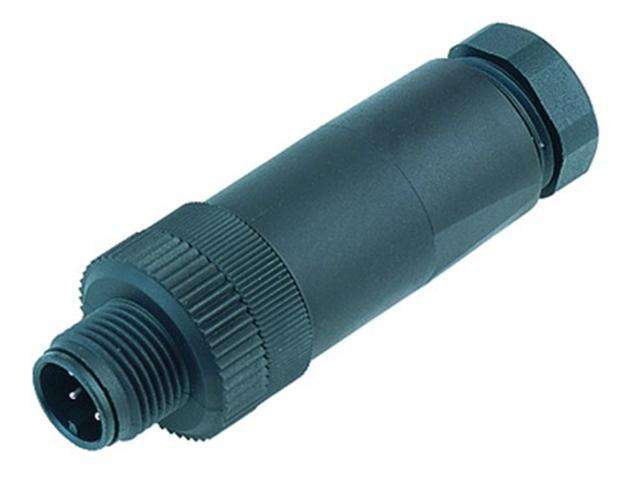

4 way M12 A-Coding Male Cable Circular Connector with 6~8mm cable outlet, plastic locking system and screw termination

Overview

Features

Specification

Connector locking system	Screw
Termination	screw
Wire gauge (mm)	0,75 mm²
Wire gauge (AWG)	18
Cable outlet	6 - 8 mm
Degree of protection	IP 67
Mechanical operation	> 50 mating cycles
Upper temperature	+85 °C
Lower temperature	-40°C
Rated voltage	250 V
Rated impulse voltage	2500 V
Pollution degree	3
Overvoltage category	II
Material group	III
Rated current (40°C)	4 A
Volume resistivity	8 mO
Material of contact	CuZn (brass)
Contact plating	CuSnZn (Optalloy)
Material of contact body	PA
Material of housing	PA

Downloads

Datasheet Download

Enhance your connectivity with the 99-0429-57-04 4-way M12 A-Coding Male Cable Connector. Designed for durability and reliability, this connector features a robust plastic locking system, supports cable outlets of 6-8mm, and offers IP67 protection. Perfect for industrial applications, it ensures secure connections even in extreme temperatures, making it the ideal choice for your wiring needs.
