99-0495-106-24

Name: 99-0495-106-24 - Communica [Part No: 99-0495-106-24]
Brand: Binder
SKU: 99-0495-106-24
Price: 826.40 ZAR
Availability: OutOfStock

SKU: 99-0495-106-24

BRAND: Binder

Sold Out
R 950.36_{(inc VAT)}
R 826.40_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP67

Circular Connector M16 Cable Male Right Angle 24 Pole DIN Gold Plated Contacts Solder Screw Lock 6mm Cable Entry IP67 1A60V(32V)

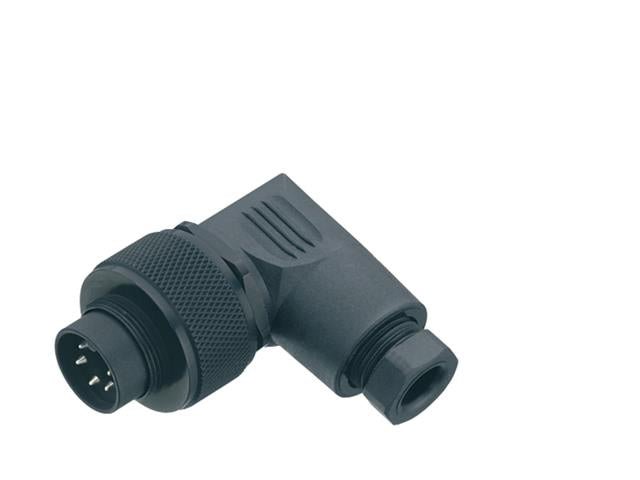

M16 Male Angled Connector

Specifications

Connector design : male angled connector
Version : connector male angled
Connector locking system : screw
Termination : solder
Degree of protection : IP67
Cross-sectional area : 0.14 mm² / AWG 26
Cable outlet : 4.0 - 6.0 mm
Twistability : 90° (4 coding options)
Temperature range from/to : -40 °C / 95 °C
Mechanical operation : > 500 Mating cycles
Weight (g) : 37.69

Electrical Parameters

Rated voltage : 60 V
Rated impulse voltage : 500 V
Rated current (40 °C) : 1 A
Insulation resistance : ≥ 10¹⁰ Ω
Pollution degree : 1
Overvoltage category : I
Insulating material group : III
EMC compliance : unshielded

Downloads

Datasheet - 99-0495-106-24

Additional Information

Device	Connector
Type	M16 \| Male \| Angled

Upgrade your connectivity with the M16 Male Right Angle Connector, featuring 24 gold-plated poles for optimal performance. With IP67 protection and a durable screw-lock design, it's perfect for challenging environments, ensuring reliable connections in any application. Enjoy easy installation with a 6mm cable entry and exceptional durability, making it the ideal choice for your electrical projects.
