99 - 0621 - 00 - 07 - Power Connectors -

99-0621-00-07

Name: 99-0621-00-07 - Communica [Part No: 99-0621-00-07]
Brand: Binder
SKU: 99-0621-00-07
Price: 172.50 ZAR
Availability: InStock

SKU: 99-0621-00-07

BRAND: Binder

R 198.38_{(inc VAT)}
R 172.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Circular DIN M25 Connectors IP40

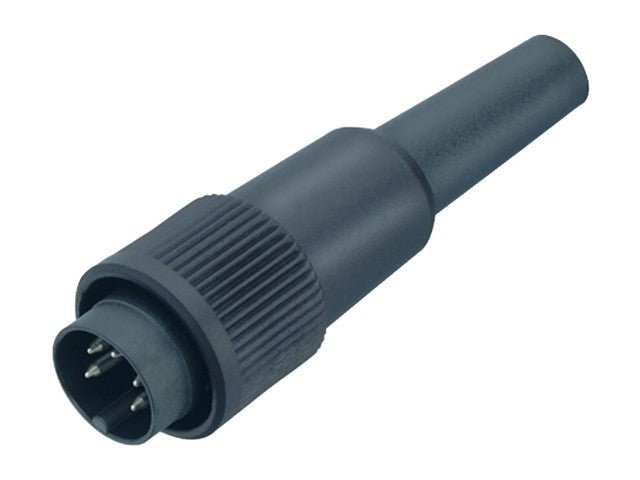

Circular Connector Bayonet Cable Male Straight. 7 Pole DIN 6mm Cable Entry Solder Terminal IP40 5A 125V

Bayonet Cable Circular Connector

Specifications

Connector design	cable connector
Execution	Connector pin straight
Connector locking	bayonet
Connection type	solder
Protection class	IP40
Connection cross-section	max. 0.75 mm² / AWG 18
Cable outlet	3.0-6.0 mm
Limit temperature from / to	-40 °C / 85 °C
Mechanical life	> 500 mating cycles
Weight (g)	9.51
Customs tariff number	85369010
Country of origin	DE

Rated voltage	125 V
Rated impulse voltage	800 V
Rated current	5.0 A
Insulation resistance	≥ 10 ¹⁰ Ω
Degree of contamination	1
Overvoltage category	I
Insulating material group	III
EMC compatibility	unshielded

Housing material	PA
Material contact body	PBT (UL94 V-0)
Material Contact	CuZn (brass)
Contact surface	Ag (silver)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	6c95b3b5-9b61-460f-b434-1a7685a2de9d

Downloads

Datasheet - 99-0621-00-07

Additional Information

Device	Connector
Type	Bayonet \| Cable \| Circular

Discover the 99-0621-00-07 Bayonet Circular Connector, designed for reliable connections with a 7-pole configuration. Ideal for various applications, it offers IP40 protection, extreme temperature durability, and over 500 mating cycles, ensuring longevity and performance. Perfect for your electrical needs, this connector guarantees secure and efficient solder terminal connections.
