99 - 1436 - 992 - 05 - Circular Connectors -

99-1436-992-05

Name: 99-1436-992-05 - Communica [Part No: 99-1436-992-05]
Brand: Binder
SKU: 99-1436-992-05
Price: 1170 ZAR
Availability: OutOfStock

SKU: 99-1436-992-05

BRAND: Binder

Sold Out
R 1,345.50_{(inc VAT)}
R 1,170.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

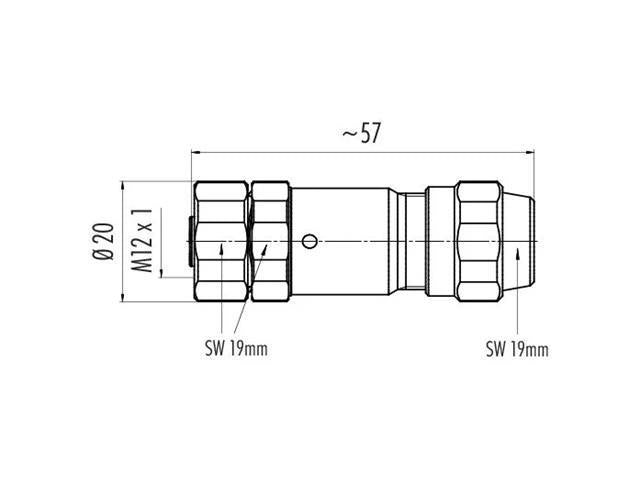

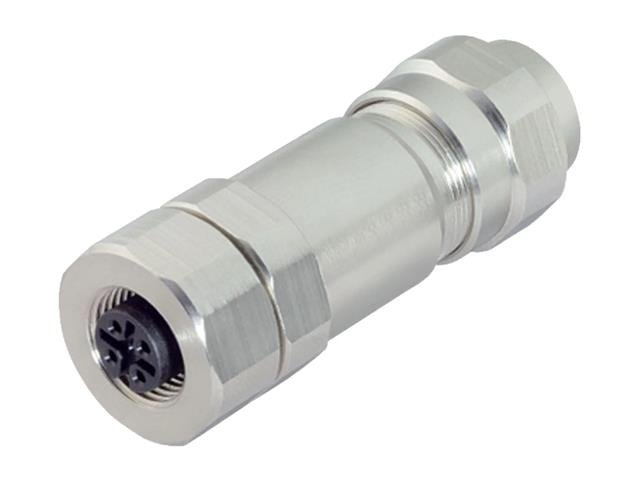

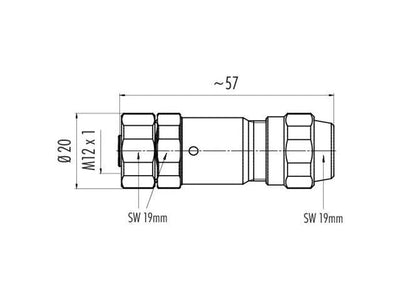

Circular Connector M12 A COD Cable Stainless Steel Female Straight. 5 Pole Screw Terminal 5,5mm - 8,6mm Cable Entry Shield Ring IP67

M12 A COD Cable Circular Connector

Specifications

Connector design	Female cable connector
Type standard	DIN EN 61076-2-101
Version	Connector socket straight
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP68/IP69K IP69K
Cross-sectional area	max. 0.75 mm² / AWG 18
Cable outlet	5.5-8.6 mm
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Additional information	stainless steel
Weight (g)	58.22
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	1500 V
Rated current	4 A (3 A UL)
Insulation resistance	> 10⁸ Ω
Pollution degree	3
Overvoltage category	II
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shielding ring

Housing material	Stainless steel
Contact body material	PA66 (UL94 HB)
Contact material	CuZn (brass)
Contact plating	Au (gold)
Locking material	Stainless steel
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	542fda4c-d36f-4868-a20e-bcb3a4ddb5dd
PFAS present	yes

Downloads

Datasheet - 99-1436-992-05

Additional Information

Device	Connector
Type	M12 \| A COD Cable \| Circular
