99-1525-814-04

Name: 99-1525-814-04 - Communica [Part No: 99-1525-814-04]
Brand: Binder
SKU: 99-1525-814-04
Price: 330.50 ZAR
Availability: OutOfStock

SKU: 99-1525-814-04

BRAND: Binder

Sold Out
R 380.08_{(inc VAT)}
R 330.50_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

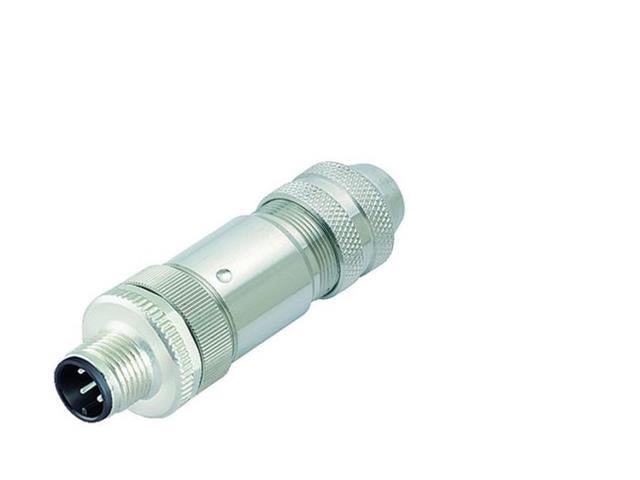

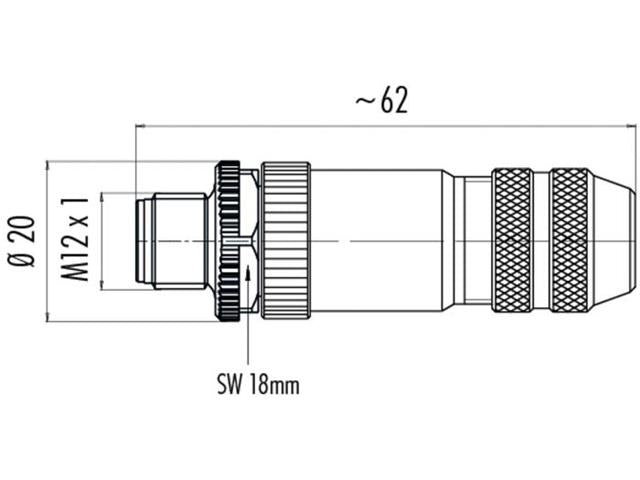

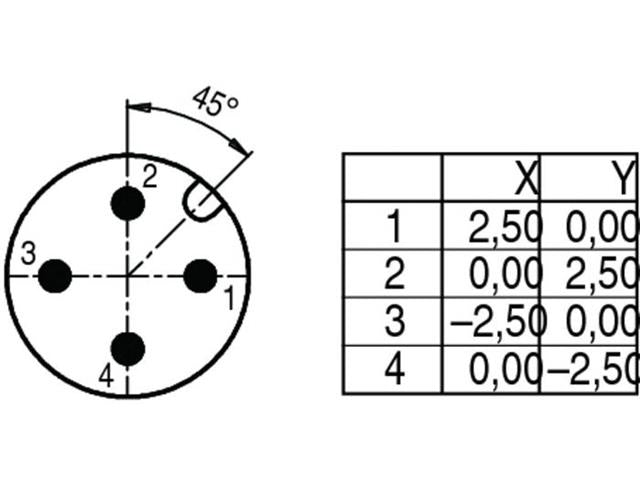

Circular Connetor M12 A Code Cable Male Straight. 4 Pole Wire Clamp 6mm Cable Entry Ring Shield IP67

99-1525-814-04 Female Cable Connector

Specifications

Connector locking system	Screw

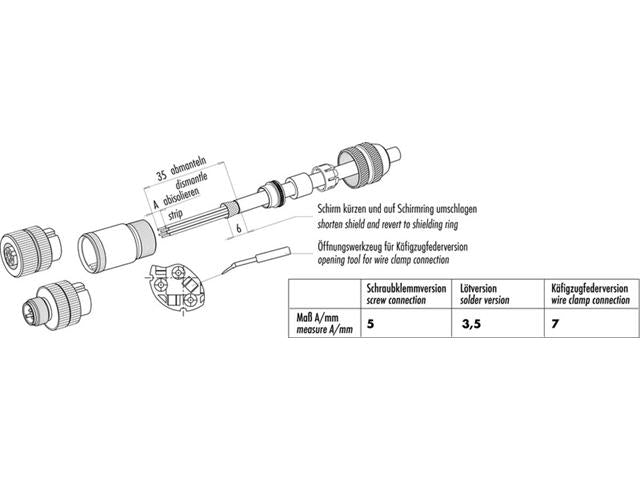

Termination	wire clamp
Wire gauge (mm)	0,50 mm²
Wire gauge (AWG)	20
Cable outlet	4~6 mm
Degree of protection	IP 67
Mechanical operation	>100 mating cycles
Upper temperature	+85 °C
Lower temperature	-40°C
Rated voltage	250 V
Rated impulse voltage	2500 V
Pollution degree	3
Overvoltage category	II
Material group	III
Rated current (40°C)	4 A
Volume resistivity	3 mO
Material of contact	CuSn (bronce)
Contact plating	Au (gold)
Material of contact body	PA
Material of housing	zinc diecasting, nickel plated

Downloads

99-1525-814-04 Datasheet

Additional Information

Device	Cable Connector
Type	Cylindrical \| Circular

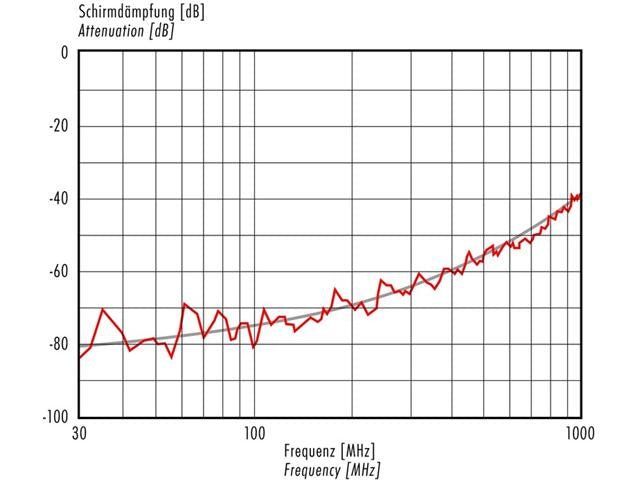

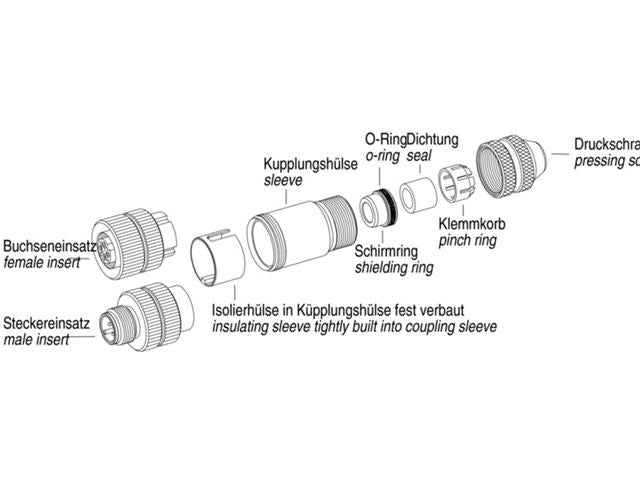

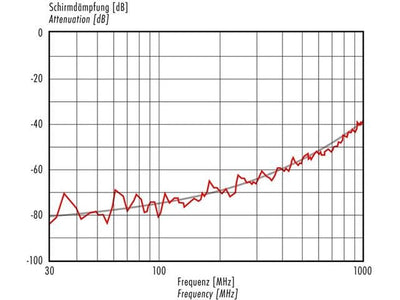

Highlights	Wire Clamp \| M12 A-Coded \| IP67 \| Shieldable \| Diecasted Zinc Thread Ring \| version with Shielding Ring

Enhance your connectivity with the 99-1525-814-04 M12 A Code Cable Connector. Designed for durability, this IP67-rated, 4-pole connector ensures secure connections in harsh environments, supporting temperatures from -40°C to +85°C. With its robust wire clamp and gold-plated contacts, you can trust this connector for reliable performance in your applications. Perfect for industrial settings, it offers easy installation and exceptional shielding for optimal signal integrity.
