99 - 2062 - 02 - 08 - Circular Connectors - 4099879114679

99-2062-02-08

Name: 99-2062-02-08 - Communica [Part No: 99-2062-02-08]
Brand: Binder
SKU: 99-2062-02-08
Price: 302 ZAR
Availability: InStock

SKU: 99-2062-02-08

BRAND: Binder

R 347.30_{(inc VAT)}
R 302.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular DIN M16 Connectors IP40

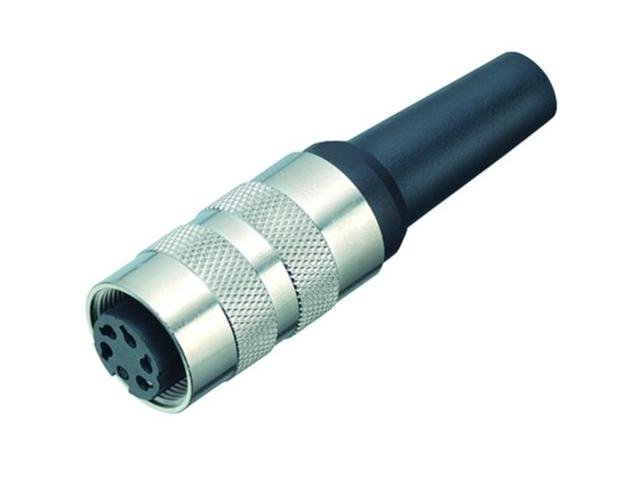

Circular Connector M16 Cable Female Straight 8 Pole Screw Lock 6mm Cable Entry IP40

M16 Cable Female Circular Connector

Specifications

Connector design	Female cable connector
Type standard	DIN EN 61076-2-106
Version	Connector socket straight
Connector locking system	screw
Termination	solder
Degree of protection	IP40
Connection cross-section	max. 0.75 mm² / AWG 18
Cable outlet	6.0-8.0 mm
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	28.60
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	500 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	shieldable
Shield connection	Solder lug

Downloads

Datasheet

Additional Information

Device	Connector
Type	M16 \| Cable \| Female \| Circular
Cable	cable outlet 6 ~ 8 mm
Wire Range	20 AWG 0.75mmsq
Degree of Protection	IP40

Discover the reliable M16 Female Circular Connector, designed for optimal performance with an IP40 rating. Perfect for secure connections in various applications, it features a screw lock for stability and accommodates cable sizes from 6 to 8 mm. With a temperature range of -40 °C to 85 °C and over 500 mating cycles, this connector ensures durability and longevity for your projects.
