99-2429-24-03

Name: 99-2429-24-03 - Communica [Part No: 99-2429-24-03]
Brand: Binder
SKU: 99-2429-24-03
Price: 264.20 ZAR
Availability: InStock

SKU: 99-2429-24-03

BRAND: Binder

R 303.83_{(inc VAT)}
R 264.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M12 Industrial Automation Connectors

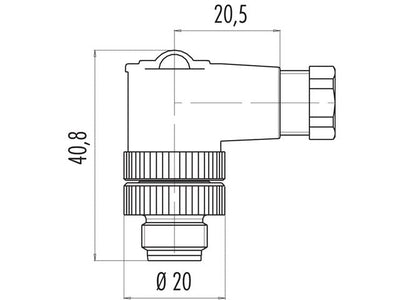

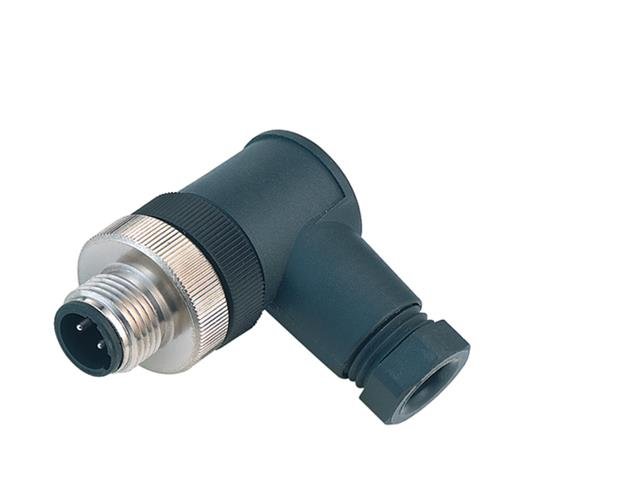

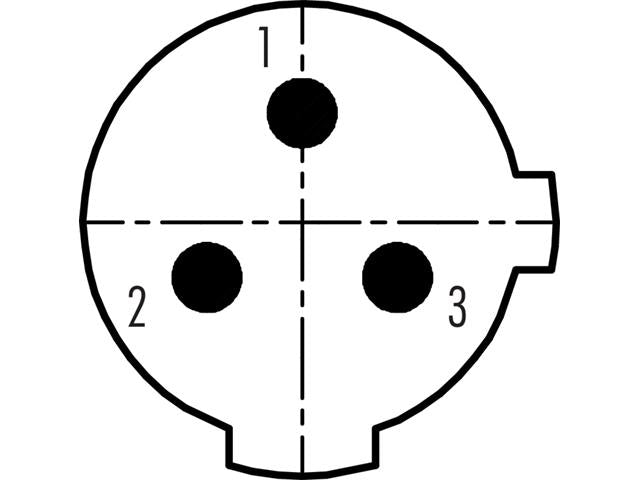

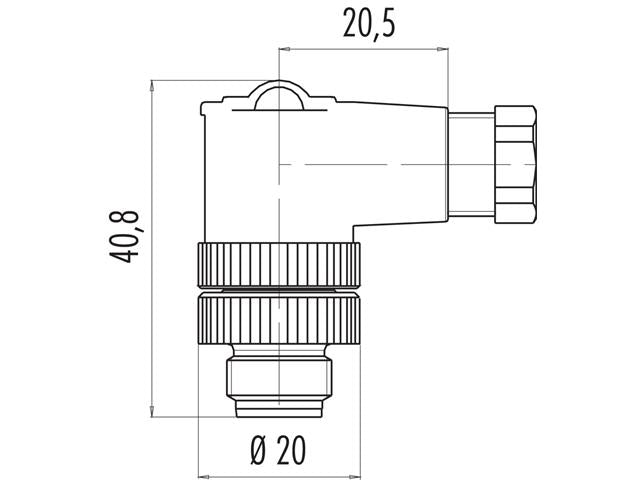

Circular Connector M12 US COD (1/2" UNF) Cable Male Right Angled 3 Pole Screw Terminal IP67

M12 US COD Circular Connector

Feature(s)

Connector design : Male angled connector
Version : connector male angled
Connector locking system : screw
Termination : screw clamp
Degree of protection : IP67

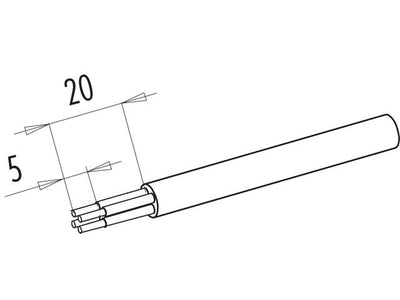

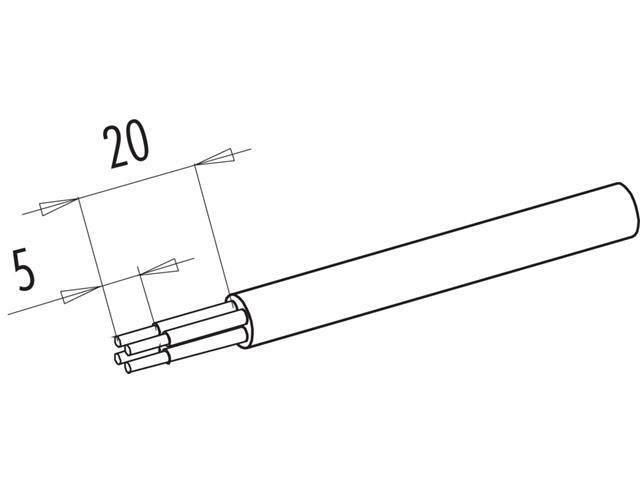

Cross-sectional area : max. 0.75 mm² / max. AWG 18
Cable outlet : 4.0 - 6.0 mm
Temperature range from/to : -25 °C / 85 °C
Mechanical operation : > 50 Mating cycles
Weight (g) : 23.33

Electrical parameters

Rated voltage : 250 V
Rated impulse voltage : 2500 V
Rated current (40 °C) : 4.0 A
Insulation resistance : ≥ 10¹⁰ Ω
Pollution degree : 3
Overvoltage category : II
Insulating material group : II
EMC compliance : unshielded

Material

Housing material : PA
Contact body material : PA
Contact material : CuZn (brass)
Contact plating : CuSnZn (Optalloy)
REACH SVHC : CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)

Downloads

Datasheet - 99-2429-24-03

Additional Information

Device	Connector
Type	M12 \| US COD \| Circular

Upgrade your connectivity with the 99-2429-24-03 M12 Circular Connector. This male right-angled connector features a secure screw locking system and IP67 protection, ensuring reliable performance in challenging environments. With a temperature range of -25 °C to 85 °C and over 50 mating cycles, it's perfect for durable, long-lasting applications. Enhance your projects with this robust and efficient solution today!
