99-3361-100-03

Name: 99-3361-100-03 - Communica [Part No: 99-3361-100-03]
Brand: Binder
SKU: 99-3361-100-03
Price: 462.11 ZAR
Availability: InStock

SKU: 99-3361-100-03

BRAND: Binder

R 531.43_{(inc VAT)}
R 462.11_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Circular Connectors

Category: Circular M8 Industrial Automation Connectors

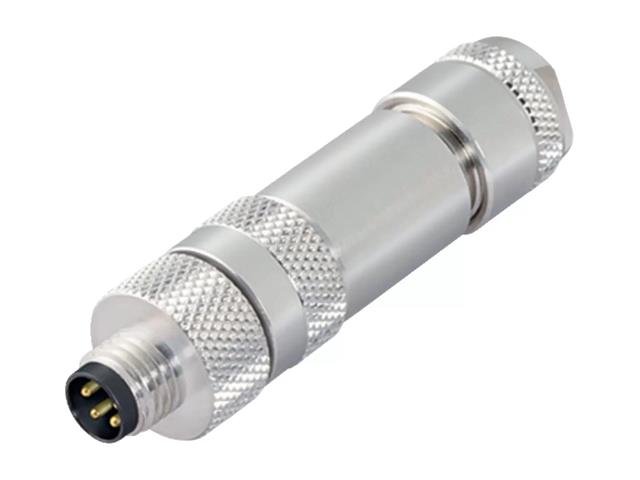

Circular Connector M8 Cable Male Straight, 3 Pole Screw Lock Screw Term 5,0mm Cable Entry Shield 4A 30V IP67

Circular Connector M8 Cable Male Straight

Specifications

Part no.	99 3361 100 03
Connector design	Male cable connector
Type standard	DIN EN 61076-2-104
Version	Connector pin straight
Connector locking system	screw
Termination	screw clamp
Degree of protection	IP67
Cross-sectional area	0.14-0.50 mm² / AWG 26-20
Cable outlet	4.0-5.5 mm
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	27.43

Rated voltage	30 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Pollution degree	3
Overvoltage category	III
Insulating material group	II
EMC compliance	shieldable
Shield connection	Iris type spring

Downloads

Datasheet - 99-3361-100-03

Additional Information

Device	Connector
Type	Male

Elevate your connectivity with the 99-3361-100-03 Circular Connector M8. This male straight connector features a screw lock for secure connections, a durable IP67 rating for water and dust resistance, and operates efficiently in temperatures from -40 °C to 85 °C. Perfect for reliable electrical performance in demanding environments, it supports up to 4A at 30V.
