99-3402-00-03

Name: 99-3402-00-03 - Communica [Part No: 99-3402-00-03]
Brand: Binder
SKU: 99-3402-00-03
Price: 216 ZAR
Availability: OutOfStock

SKU: 99-3402-00-03

BRAND: Binder

Sold Out
R 248.40_{(inc VAT)}
R 216.00_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: Circular M8 Industrial Automation Connectors

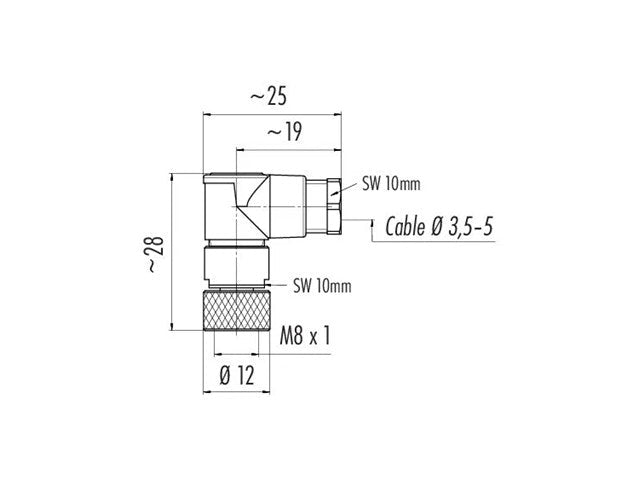

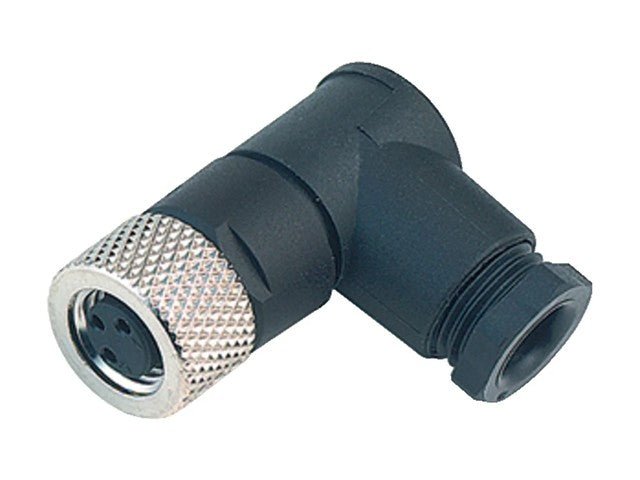

Circular Connector M8 Cable Female Right Angled, 3 Pole Screw Lock Solder Terminal 5,0mm Cable Entry IP67 UL 2238

M8 Cable Female Circular Connector

Specifications

Connector design	Female angled connector
Type standard	DIN EN 61076-2-104
Coding	A-coded
Version	Connector socket angled
Connector locking system	screw
Termination	solder
Degree of protection	IP67
Connection cross-section	0.25 mm² / AWG 24
Cable outlet	3.5-5.0 mm
Twistability	90° (4 coding options)
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	7.13
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V (UL 30 V)
Rated impulse voltage	1500 V
Rated current	4.0 A
Pollution degree	3
Overvoltage category	III
Insulating material group	III
EMC compliance	unshielded

Housing material	PA
Contact body material	PA
Contact material	CuSn (bronze)
Contact plating	Au (gold)
Locking material	CuZn (brass)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	ea1e9bd9-59aa-48c6-8227-7625fcc2c763

Downloads

Datasheet - 99-3402-00-03

Additional Information

Device

Connector

Elevate your connections with the M8 Female Right Angled Connector. Featuring a durable IP67 rating and screw lock for secure, reliable performance, this connector is perfect for tight spaces and harsh environments. With a temperature range of -40 °C to 85 °C and over 100 mating cycles, it's designed for longevity and stability in your applications.
